Schneider Electric XB5AW36B5C0 Illuminated Pushbutton
Schneider Electric
$52.62
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

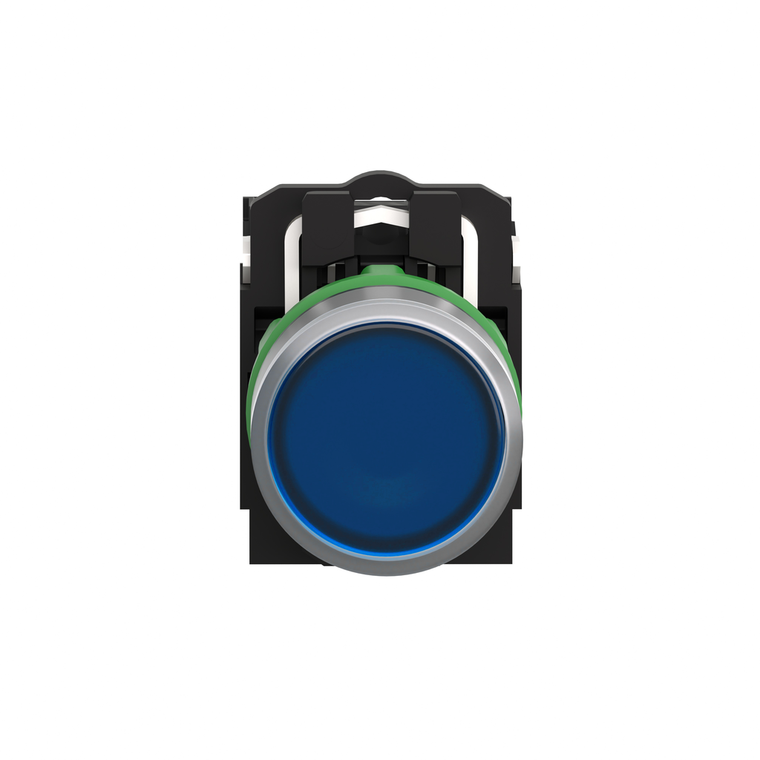

Schneider Electric XB5AW36B5C0 Illuminated Pushbutton
This illuminated push-button provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long-lasting LED illumination.
- [Ui] Rated Insulation Voltage:
- 600 V 3)EN/IEC 60947-1
- Mercury Free:
- Yes
- China Rohs Regulation:
- X
- Width:
- 30 mm
- Product Certifications:
- GL || CSA || BV || LROS (Lloyds register of shipping) || DNV || UL Listed
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Head Type:
- standard
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Protective Treatment:
- TH
- Net Weight:
- 0.056 kg
- Current Consumption:
- 18 mA
- [Ith] Conventional Free Air Thermal Current:
- 10 A EN/IEC 60947-5-1
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN
- Surge Withstand:
- 1 kV IEC 61000-4-5
- Ambient Air Temperature For Operation:
- -40-70 °C
- Operating Travel:
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Range Of Product:
- Harmony XB5
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Operator Additional Information:
- with plain lens
- Signalling Type:
- steady
- Contacts Usage:
- standard contacts
- Positive Opening:
- with EN/IEC 60947-5-1 appendix K
- Cap/Operator Or Lens Colour:
- blue
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- [Us] Rated Supply Voltage:
- 24 V AC/DC 50/60 Hz
- Device Short Name:
- XB5
- Contacts Type And Composition:
- 1 NO + 1 NC
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV EN/IEC 60947-1
- Supply Voltage Limits:
- 19.2-30 V DC || 21.6-26.4 V AC
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- Bezel Material:
- plastic colour plated grey
- Service Life:
- 100000 h at rated voltage and 25 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Height:
- 42 mm
- Ik Degree Of Protection:
- IK05 IEC 50102
- Overvoltage Category:
- class II IEC 60536
- Resistance To Electromagnetic Fields:
- 10 V/m IEC 61000-4-3
- Depth:
- 57 mm
- Product Or Component Type:
- illuminated push-button
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mounting Diameter:
- 22 mm
- Contacts Material:
- silver alloy (Ag/Ni)
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operating Force:
- 3.5 N NC changing electrical state || 3.8 N
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Bulb Base:
- integral LED
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sale Per Indivisible Quantity:
- 1
- Electrical Reliability:
- λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mechanical Durability:
- 10000000 cycles
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Terminals Description Iso N°1:
- (21-22)NC || (13-14)NO
- Short-Circuit Protection:
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- Device Presentation:
- complete product
- Fixing Collar Material:
- plastic
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Type Of Operator:
- spring return
- Contact Operation:
- slow-break
- Rohs Exemption Information:
- Yes
- Light Source:
- universal LED
- Electromagnetic Emission:
- class B IEC 55011
- Shape Of Signaling Unit Head:
- round
- Tightening Torque:
- 0.8-1.2 N.m EN 60947-1
- Operator Profile:
- blue flush, unmarked
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
