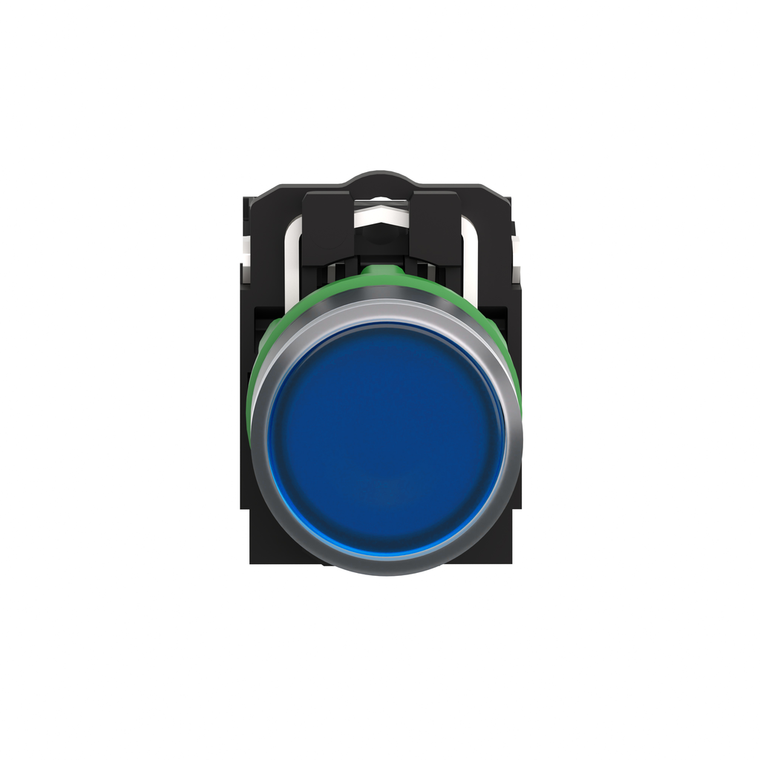

Schneider Electric XB5AW36G5 Illuminated Pushbutton

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5AW36G5 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AW36G5

UPC:

3389110136968

MPN:

Condition:

New

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

China Rohs Regulation:

X

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Device Presentation:

complete product

Terminals Description Iso N°1:

(13-14)NO || (21-22)NC

Operator Additional Information:

with plain lens

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Bezel Material:

dark grey plastic

Current Consumption:

14 mA

Standards:

IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-1 || UL 508 || JIS C8201-1

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Protective Treatment:

TH

Service Life:

100000 h at rated voltage and 25 °C

Contacts Type And Composition:

1 NO + 1 NC

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Environmental Disclosure:

ENVPEP1710010EN

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Light Source:

universal LED

Surge Withstand:

1 kV IEC 61000-4-5

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Supply Voltage Limits:

100-132 V AC

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Ik Degree Of Protection:

IK05 IEC 50102

Operator Profile:

blue flush, unmarked

Contact Operation:

slow-break

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Warranty:

18 months

Type Of Operator:

spring return

Contacts Usage:

standard contacts

Product Certifications:

CSA || UL Listed || GL || LROS (Lloyds register of shipping) || DNV || BV

Depth:

57 mm

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Shape Of Signaling Unit Head:

round

Head Type:

standard

Ambient Air Temperature For Storage:

-40-70 °C

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Electromagnetic Emission:

class B IEC 55011

Product Or Component Type:

illuminated push-button

Fixing Collar Material:

plastic

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Bulb Base:

integral LED

Width:

30 mm

Contacts Material:

silver alloy (Ag/Ni)

Circularity Profile:

ENVEOLI1710010EN

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Mercury Free:

Yes

Positive Opening:

with IEC 60947-5-1 appendix K

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Ip Degree Of Protection:

IP66 IEC 60529 || IP69 || IP69K || IP67

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Sustainable Offer Status:

Green Premium product

Net Weight:

0.056 kg

Range Of Product:

Harmony XB5

Ambient Air Temperature For Operation:

-40-70 °C

Mechanical Durability:

10000000 cycles

Signalling Type:

steady

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Device Short Name:

XB5

Height:

42 mm

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Cap/Operator Or Lens Colour:

blue

Mounting Diameter:

22 mm

Overvoltage Category:

class II IEC 60536

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Rohs Exemption Information:

Yes

Sale Per Indivisible Quantity:

1
