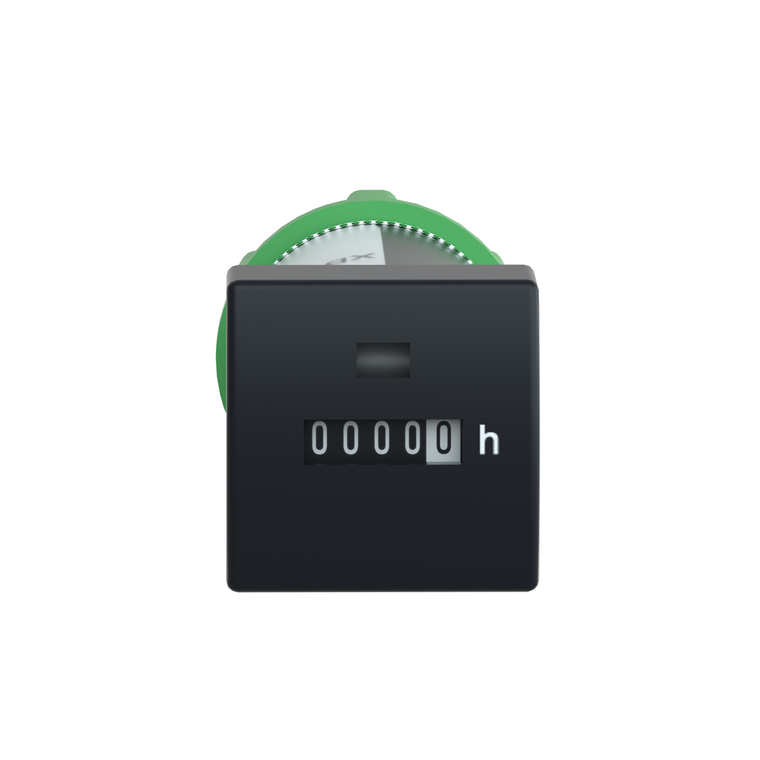

Schneider Electric XB5DSB Hour Counter Dia 22 12 To 24 Vacdc

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5DSB Hour Counter Dia 22 12 To 24 Vacdc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5DSB

UPC:

3389110102550

MPN:

Condition:

New

[Us] Rated Supply Voltage:

12...24 V +/- 10 %

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Device Presentation:

monolithic product

Warranty:

18 months

Width:

30 mm

Mounting Diameter:

22 mm

Net Weight:

0.045 kg

Environmental Disclosure:

ENVPEP1710010EN

Sustainable Offer Status:

Green Premium product

Current Consumption:

7...15 mA

Ambient Air Temperature For Operation:

-25-70 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs Exemption Information:

Yes

Reach Free Of Svhc:

Yes

Range Of Product:

Harmony XB5

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mounting Support:

panel mounting

Mercury Free:

Yes

Display Digits:

5

Ambient Air Temperature For Storage:

-40-70 °C

Product Certifications:

CE || UL

Depth:

60 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

China Rohs Regulation:

X

Standards:

IEC 60947-5-1

Mounting Mode:

flush-mounted

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ip Degree Of Protection:

IP65 conforming to IEC 60529

Height:

30 mm

Bezel Material:

dark grey plastic

Circularity Profile:

ENVEOLI1710010EN

Product Or Component Type:

hour counter

Protective Treatment:

TH

Electrical Shock Protection Class:

class II IEC 60536

Nema Degree Of Protection:

NEMA 13

Reset:

without

Toxic Heavy Metal Free:

Yes

Datasheet:

View
