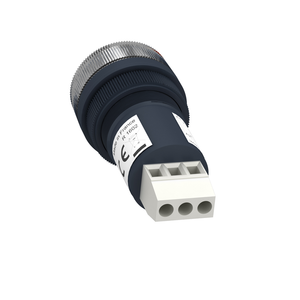

Schneider Electric XB5DTB22 Panel Mounted Timer Monofunction 0,5S To
Schneider Electric
$40.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB5, monolithic analog timer can be set for timing intervals between 0.5s to 10s and is supplied with a 24V DC input. This analog timer provides visual timing of your processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It provides highly visible timing of machine processes, ensuring accuracy and consistency of operation.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Local Signalling:
- LED green, flashing timing in progress || LED, steady no timing in progress and output relay energised
- Fixing Collar Material:
- plastic
- Dielectric Strength:
- 1500 V IEC 61812-1
- China Rohs Regulation:
- X
- Product Or Component Type:
- timer
- Product Certifications:
- CE || UL Listed
- Standards:
- IEC 61812-1 || UL 508
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Height:
- 62 mm
- Maximum Residual Current:
- 0.1 mA
- Vibration Resistance:
- 0.15 mm 10-60 Hz)IEC 60068-2-6 || 2 gn 60-150 Hz)IEC 60068-2-6
- Disturbance Radiated/Conducted:
- class B EN 50022
- Diameter:
- 29 mm
- [Us] Rated Supply Voltage:
- 24 V DC
- Immunity To Radioelectric Fields:
- 10 V level 3 IEC 61000-4-6
- Circularity Profile:
- ENVEOLI1710010EN
- Repeat Accuracy:
- +/- 0.5 %
- Maximum Voltage Drop:
- 3 V
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Power Consumption In W:
- 1 W
- Shock Resistance:
- +/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Time Delay Range:
- 0.5...10 s
- Electromagnetic Compatibility:
- electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2 || electromagnetic emission class B conforming to IEC 55011
- Ambient Air Temperature For Storage:
- -20-80 °C
- Thickness:
- 1-6 mm
- Range Of Product:
- Harmony XB5
- Surge Withstand:
- 1 kV, level 2 IEC 61000-4-5
- Environmental Disclosure:
- ENVPEP1710010EN
- Ambient Air Temperature For Operation:
- -20-60 °C
- Setting Accuracy Of Time Delay:
- +/- 10 % of full scale 25 °C IEC 61812-1
- Line Rated Current:
- 200 mA at 20 °C( derating 1.5 mA per °C)
- Sale Per Indivisible Quantity:
- 1
- Temperature Drift:
- +/- 0.05 %/°C
- Mounting Diameter:
- 22 mm
- Supply Voltage Limits:
- 16.8-31.2 V DC
- Tightening Torque:
- 0.5 N.m
- Overvoltage Category:
- class 3 IEC 60536 || class 3 IEC 60664-1
- Net Weight:
- 0.027 kg
- Minimum Switching Current:
- 10 mA
- Resistance To Fast Transients:
- 2 kV level 3 IEC 61000-4-4
- Protection Type:
- overvoltage protection || reverse polarity protection
- Shape Of Signaling Unit Head:
- round
- Pollution Degree:
- 3 IEC 60664-1
- Sustainable Offer Status:
- Green Premium product
- Output Type:
- open collector PNP
- Voltage Drift:
- +/- 0.2 %/V
- Device Presentation:
- monolithic product
- Connections - Terminals:
- screw terminals 1 x 4 mm² IEC 60947-1 || screw terminals 1 x 2.5 mm² IEC 60947-1
- Reset Time:
- 5 ms after time delay on de-energisation || 7 ms during time delay on de-energisation
- Bezel Material:
- plastic
- Output Short-Circuit Protection:
- yes
- [Ui] Rated Insulation Voltage:
- 50 V IEC 60947-1 || 50 V IEC 60664-1
- Time Delay Type:
- A
- Resistance To Electromagnetic Fields:
- 10 V/m 80 MHz...1 GHz level 3 IEC 61000-4-3 || 3 V/m 1.4...2 GHz level 2 IEC 61000-4-3 || 1 V/m 2...2.7 GHz level 1 IEC 61000-4-3
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV IEC 60947-1 || 4 kV IEC 60664-1
- Temporary Permissible Current:
- 10 A 0.01 s
- Ip Degree Of Protection:
- front IP65 IEC 60529 || back IP20 IEC 60529
