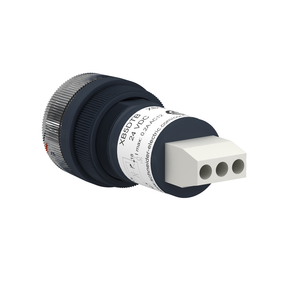

Schneider Electric XB5DTB23 Panel Mounted Timer Monofunction 3S To 6

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5DTB23 Panel Mounted Timer Monofunction 3S To 6

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5DTB23

UPC:

3606481205476

MPN:

Condition:

New

Tightening Torque:

0.5 N.m

Bezel Material:

plastic

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Connections - Terminals:

screw terminals 1 x 4 mm² IEC 60947-1 || screw terminals 1 x 2.5 mm² IEC 60947-1

Ambient Air Temperature For Operation:

-20-60 °C

Product Or Component Type:

timer

Electromagnetic Compatibility:

electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2 || electromagnetic emission class B conforming to IEC 55011

Ambient Air Temperature For Storage:

-20-80 °C

Maximum Residual Current:

0.1 mA

Voltage Drift:

+/- 0.2 %/V

Pollution Degree:

3 IEC 60664-1

Repeat Accuracy:

+/- 0.5 %

Standards:

IEC 61812-1 || UL 508

Maximum Voltage Drop:

3 V

Net Weight:

0.027 kg

Height:

62 mm

Immunity To Radioelectric Fields:

10 V level 3 IEC 61000-4-6

Power Consumption In W:

1 W

Mounting Diameter:

22 mm

Vibration Resistance:

0.15 mm 10-60 Hz)IEC 60068-2-6 || 2 gn 60-150 Hz)IEC 60068-2-6

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Resistance To Electromagnetic Fields:

10 V/m 80 MHz...1 GHz level 3 IEC 61000-4-3 || 3 V/m 1.4...2 GHz level 2 IEC 61000-4-3 || 1 V/m 2...2.7 GHz level 1 IEC 61000-4-3

[Ui] Rated Insulation Voltage:

50 V IEC 60947-1 || 50 V IEC 60664-1

China Rohs Regulation:

X

Dielectric Strength:

1500 V IEC 61812-1

Temporary Permissible Current:

10 A 0.01 s

Reset Time:

5 ms after time delay on de-energisation || 7 ms during time delay on de-energisation

Sustainable Offer Status:

Green Premium product

[Us] Rated Supply Voltage:

24 V DC

Environmental Disclosure:

ENVPEP1710010EN

Product Certifications:

UL Listed || CE

Shock Resistance:

+/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27

Thickness:

1-6 mm

Circularity Profile:

ENVEOLI1710010EN

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1 || 4 kV IEC 60664-1

Protection Type:

reverse polarity protection || overvoltage protection

Device Presentation:

monolithic product

Disturbance Radiated/Conducted:

class B EN 50022

Output Short-Circuit Protection:

yes

Temperature Drift:

+/- 0.05 %/°C

Fixing Collar Material:

plastic

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mercury Free:

Yes

Output Type:

open collector PNP

Resistance To Fast Transients:

2 kV level 3 IEC 61000-4-4

Supply Voltage Limits:

16.8-31.2 V DC

Line Rated Current:

200 mA at 20 °C( derating 1.5 mA per °C)

Shape Of Signaling Unit Head:

round

Time Delay Range:

3...60 s

Overvoltage Category:

class 3 IEC 60536 || class 3 IEC 60664-1

Diameter:

29 mm

Minimum Switching Current:

10 mA

Setting Accuracy Of Time Delay:

+/- 10 % of full scale 25 °C IEC 61812-1

Sale Per Indivisible Quantity:

1

Ip Degree Of Protection:

front IP65 IEC 60529 || back IP20 IEC 60529

Surge Withstand:

1 kV, level 2 IEC 61000-4-5

Time Delay Type:

A

Rohs Exemption Information:

Yes

Local Signalling:

LED green, flashing timing in progress || LED, steady no timing in progress and output relay energised

Range Of Product:

Harmony XB5

Datasheet:

View
