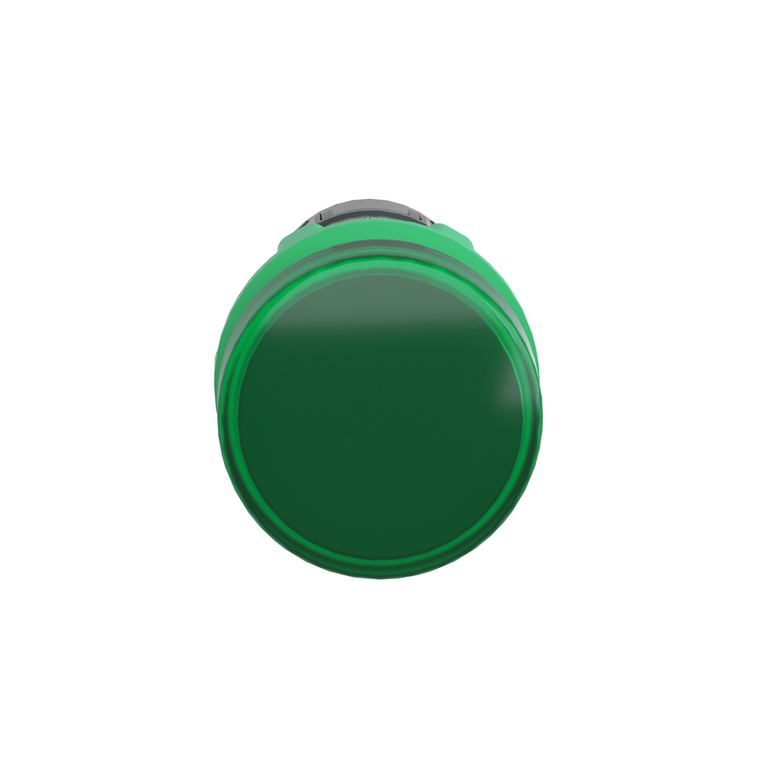

Schneider Electric XB5EVB3 Monolithic Led Pilot Light, Green, 24V

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5EVB3 Monolithic Led Pilot Light, Green, 24V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5EVB3

UPC:

3389119041331

MPN:

Condition:

New

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Mounting Diameter:

22 mm

Ambient Air Temperature For Operation:

-25-70 °C

Electromagnetic Emission:

class B IEC 55011

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Signalling Type:

steady

Compatibility Code:

XB5

Light Source:

universal LED

Mercury Free:

Yes

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Depth:

54 mm

Ik Degree Of Protection:

IK05 IEC 50102

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Rohs Exemption Information:

Yes

China Rohs Regulation:

X

Circularity Profile:

ENVEOLI1710010EN

Bulb Base:

integral LED

Ambient Air Temperature For Storage:

-40-70 °C

Net Weight:

0.038 kg

Head Type:

standard

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Current Consumption:

18 mA

Environmental Disclosure:

ENVPEP1710010EN

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

Standards:

UL 508 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Bezel Material:

dark grey plastic

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Light Source Colour:

green

Range Of Product:

Harmony XB5

Surge Withstand:

1 kV IEC 61000-4-5

Sustainable Offer Status:

Green Premium product

Terminals Description Iso N°1:

(X1-X2)PL

Overvoltage Category:

class II IEC 60536

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Sale Per Indivisible Quantity:

1

Product Certifications:

CSA || UL Listed

Warranty:

18 months

Protective Treatment:

TH

Shape Of Signaling Unit Head:

round

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Operator Additional Information:

with plain lens

Device Short Name:

XB5

Fixing Collar Material:

plastic

Service Life:

100000 h at rated voltage and 25 °C

Height:

29 mm

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

Width:

29 mm

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Product Or Component Type:

pilot light

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Presentation:

monolithic product

Cap/Operator Or Lens Colour:

green

Nema Degree Of Protection:

NEMA 13 || NEMA 4X
