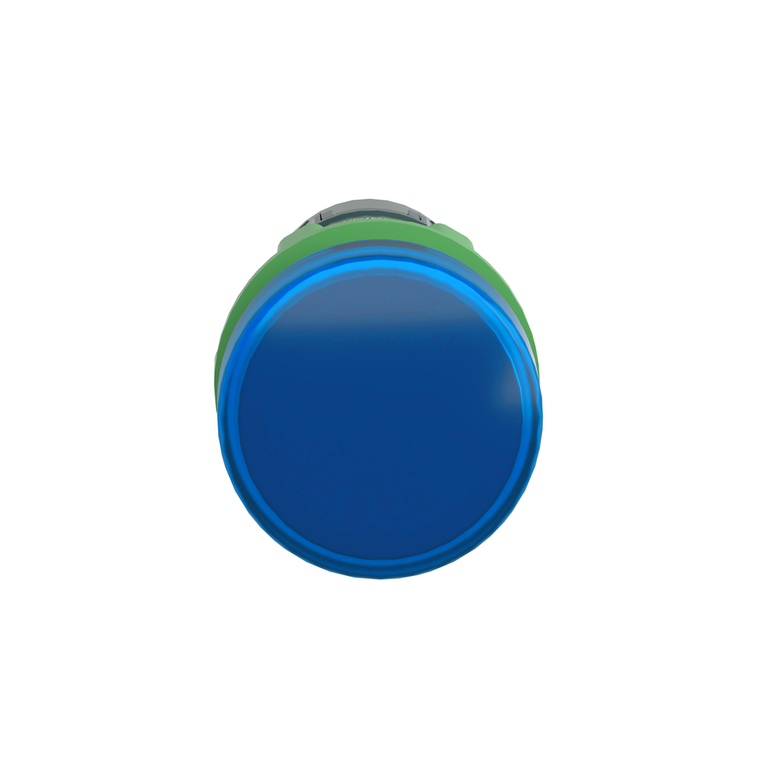

Schneider Electric XB5EVB6 Monolithic Led Pilot Light, Blue, 24V

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5EVB6 Monolithic Led Pilot Light, Blue, 24V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5EVB6

UPC:

3389119041393

MPN:

Condition:

New

Net Weight:

0.038 kg

Overvoltage Category:

class II IEC 60536

Standards:

CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-1

Mounting Diameter:

22 mm

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Sustainable Offer Status:

Green Premium product

Compatibility Code:

XB5

Shape Of Signaling Unit Head:

round

Terminals Description Iso N°1:

(X1-X2)PL

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

Cap/Operator Or Lens Colour:

blue

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Light Source Colour:

blue

Rohs Exemption Information:

Yes

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Width:

29 mm

Operator Additional Information:

with plain lens

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Depth:

54 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Bezel Material:

dark grey plastic

Light Source:

universal LED

Height:

29 mm

Environmental Disclosure:

ENVPEP1710010EN

Product Certifications:

CSA || UL Listed

Fixing Collar Material:

plastic

Product Or Component Type:

pilot light

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sale Per Indivisible Quantity:

1

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Warranty:

18 months

Circularity Profile:

ENVEOLI1710010EN

Device Short Name:

XB5

Service Life:

100000 h at rated voltage and 25 °C

Electromagnetic Emission:

class B IEC 55011

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Ambient Air Temperature For Storage:

-40-70 °C

Surge Withstand:

1 kV IEC 61000-4-5

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Protective Treatment:

TH

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Device Presentation:

monolithic product

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Ambient Air Temperature For Operation:

-25-70 °C

Bulb Base:

integral LED

Mercury Free:

Yes

Head Type:

standard

China Rohs Regulation:

X

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Signalling Type:

steady

Current Consumption:

18 mA

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Range Of Product:

Harmony XB5

Ik Degree Of Protection:

IK05 IEC 50102

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
