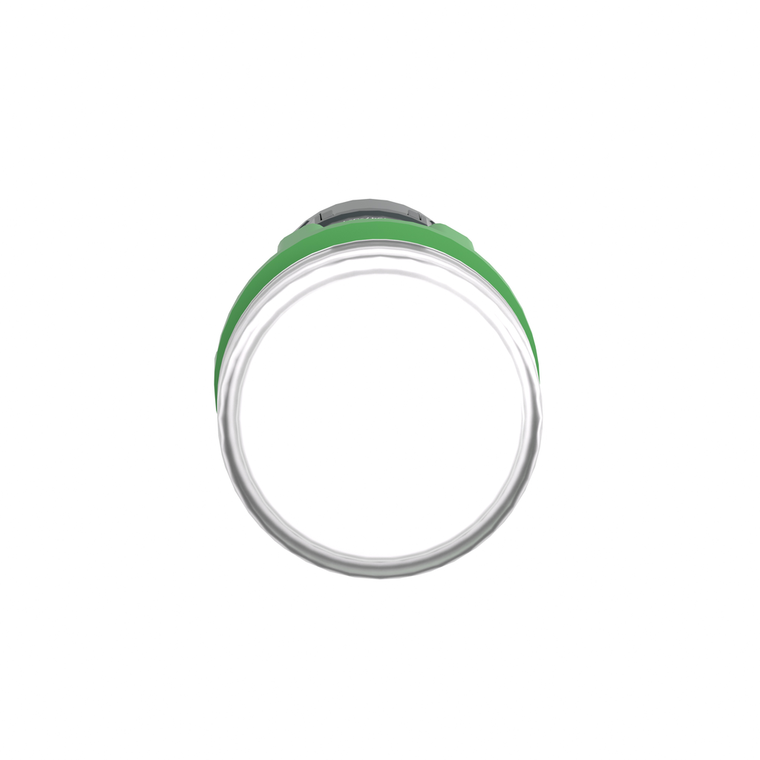

Schneider Electric XB5EVG1 Monolithic Led Pilot Light, White, 110V

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5EVG1 Monolithic Led Pilot Light, White, 110V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5EVG1

UPC:

3389119041454

MPN:

Condition:

New

Warranty:

18 months

Electromagnetic Emission:

class B IEC 55011

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Ambient Air Temperature For Operation:

-25-70 °C

Signalling Type:

steady

Width:

29 mm

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Product Certifications:

CSA || UL Listed

Terminals Description Iso N°1:

(X1-X2)PL

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Light Source Colour:

white

Current Consumption:

14 mA

Cap/Operator Or Lens Colour:

white

Product Or Component Type:

pilot light

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

Ik Degree Of Protection:

IK05 IEC 50102

Range Of Product:

Harmony XB5

Head Type:

standard

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Mercury Free:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Operator Additional Information:

with plain lens

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Ambient Air Temperature For Storage:

-40-70 °C

Resistance To Fast Transients:

2 kV IEC 61000-4-4

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Overvoltage Category:

class II IEC 60536

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Shape Of Signaling Unit Head:

round

China Rohs Regulation:

X

Bulb Base:

integral LED

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

Device Short Name:

XB5

Device Presentation:

monolithic product

Mounting Diameter:

22 mm

Net Weight:

0.038 kg

Rohs Exemption Information:

Yes

Light Source:

universal LED

Bezel Material:

dark grey plastic

Service Life:

100000 h at rated voltage and 25 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Height:

29 mm

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Environmental Disclosure:

ENVPEP1710010EN

Standards:

JIS C8201-5-1 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Protective Treatment:

TH

Depth:

54 mm

Surge Withstand:

1 kV IEC 61000-4-5

Supply Voltage Limits:

100-132 V AC

Fixing Collar Material:

plastic

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Sale Per Indivisible Quantity:

1

Compatibility Code:

XB5

Circularity Profile:

ENVEOLI1710010EN

Sustainable Offer Status:

Green Premium product
