Schneider Electric XB5FA21C0 Flush Bk Flush Cap Pb 1No Screw Clamp

Schneider Electric XB5FA21C0 Flush Bk Flush Cap Pb 1No Screw Clamp

Schneider Electric
SKU:
XB5FA21C0
|
UPC:
3606489760274
$24.57
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

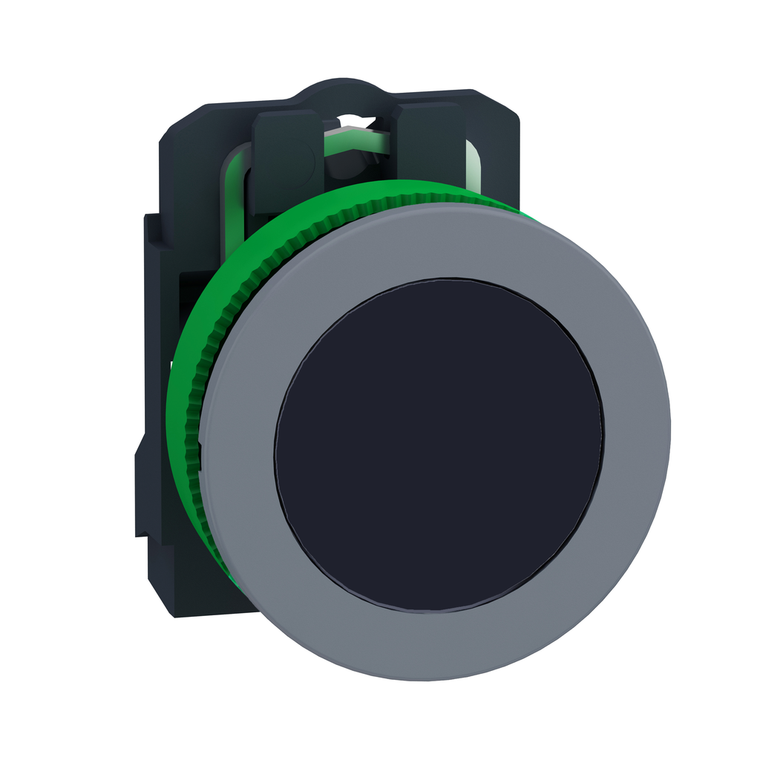

This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product. The mounting diameter is 30.5 mm. It has no marking. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. The contact type is 1NO slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and black. The bezel is plastic color plated grey and the fixing collar is plastic. The weight of this pushbutton is 37 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.
Additional Information
Bezel Material:
plastic colour plated grey
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Customizable:
no
Product Compatibility:
ZBYF2101 || ZBYF4101 || ZBYF6101 || ZBYF6102 || ZBZF32 || ZBZF33 || ZB4FBZ007
Ip Degree Of Protection:
IP66 IEC 60529 || IP67
Protective Treatment:
TH
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Operating Travel:
2.6 mm NO changing electrical state) || 4.3 mm total travel)
Device Presentation:
complete product
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Type Of Operator:
spring return || spring return flush
Contacts Usage:
standard contacts
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Product Certifications:
UL Listed || CSA
Ik Degree Of Protection:
IK03 IEC 50102
Mounting Diameter:
30.5 mm
Standards:
IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
Compatibility Code:
XB5
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Ambient Air Temperature For Storage:
-40-70 °C
Overvoltage Category:
class II IEC 60536
Ambient Air Temperature For Operation:
-40-70 °C
Contact Operation:
slow-break
China Rohs Regulation:
X
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Or Component Type:
push-button
Depth:
55 mm
Operator Profile:
black flush, unmarked || white flush, unmarked
Rohs Exemption Information:
Yes
Width:
36.6 mm
Sale Per Indivisible Quantity:
1
Electrical Durability:
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
Fixing Collar Material:
plastic
Range Of Product:
Harmony XB5
Gcr Bridge:
XB5FACUST02
Mercury Free:
Yes
Terminals Description Iso N°1:
(13-14)NO
Device Short Name:
XB5F
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Reach Free Of Svhc:
Yes
Customizable:
1
Shape Of Signaling Unit Head:
round
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Contacts Type And Composition:
1 NO
Head Type:
built-in-flush
Height:
42 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Contacts Material:
silver alloy (Ag/Ni)
Mechanical Durability:
10000000 cycles
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Operating Force:
3.8 N NO changing electrical state
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Positive Opening:
without
Toxic Heavy Metal Free:
Yes
