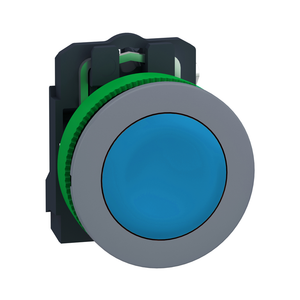

Schneider Electric XB5FA61 Flush Blue Flush Cap Pb 1No Screw Clamp

Schneider Electric XB5FA61 Flush Blue Flush Cap Pb 1No Screw Clamp

Schneider Electric
SKU:
XB5FA61
|
UPC:
3606481360533
$38.80
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product. The mounting diameter is 30.5 mm. It has no marking. Customized marking option through web customization tool in Schneider Electric website is available. Improved ergonomics and aesthetics due to flush mount design. It comes with antimicrobial characteristics. The contact type is 1NO slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and blue. The bezel and the fixing collar is plastic. The weight of this pushbutton is 37 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
Additional Information
Sustainable Offer Status:
Green Premium product
Bezel Material:
plastic || dark grey plastic
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Contacts Usage:
standard contacts
Operator Profile:
blue flush, unmarked
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Fixing Collar Material:
plastic
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Terminals Description Iso N°1:
(13-14)NO
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Product Compatibility:
ZBYF2101 || ZBYF4101 || ZBYF6101 || ZBYF6102 || ZBZF32 || ZBZF33 || ZB4FBZ007
Mounting Diameter:
30.5 mm
Range Of Product:
Harmony XB5
Environmental Disclosure:
ENVPEP1710010EN
Mercury Free:
Yes
Customizable:
1
Customizable:
no
Product Certifications:
UL Listed || CSA
Operating Force:
3.8 N NO changing electrical state
Width:
36.6 mm
Protective Treatment:
TH
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Ambient Air Temperature For Storage:
-40-70 °C
Positive Opening:
without
Head Type:
built-in-flush
Ambient Air Temperature For Operation:
-40-70 °C
Toxic Heavy Metal Free:
Yes
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Gcr Bridge:
XB5FACUST01
Operating Travel:
2.6 mm NO changing electrical state) || 4.3 mm total travel)
Reach Free Of Svhc:
Yes
Depth:
55 mm
Product Or Component Type:
push-button
Device Short Name:
XB5F
Contacts Type And Composition:
1 NO
China Rohs Regulation:
X
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Standards:
IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1 || ISO 22196:2011 || ISO 21702
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Sale Per Indivisible Quantity:
1
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Mechanical Durability:
10000000 cycles
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Overvoltage Category:
class II IEC 60536
Circularity Profile:
ENVEOLI1710010EN
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Material:
silver alloy (Ag/Ni)
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Shape Of Signaling Unit Head:
round
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Type Of Operator:
spring return
Height:
42 mm
Contact Operation:
slow-break
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Device Presentation:
complete product
Ik Degree Of Protection:
IK03 IEC 50102
Rohs Exemption Information:
Yes
Compatibility Code:
XB5
Electrical Durability:
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
