Schneider Electric XB5FD41 Flush Ss 2 Pos Return R To L 1No

Schneider Electric XB5FD41 Flush Ss 2 Pos Return R To L 1No

Schneider Electric
SKU:
XB5FD41
|
UPC:
3606481360571
$56.30
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

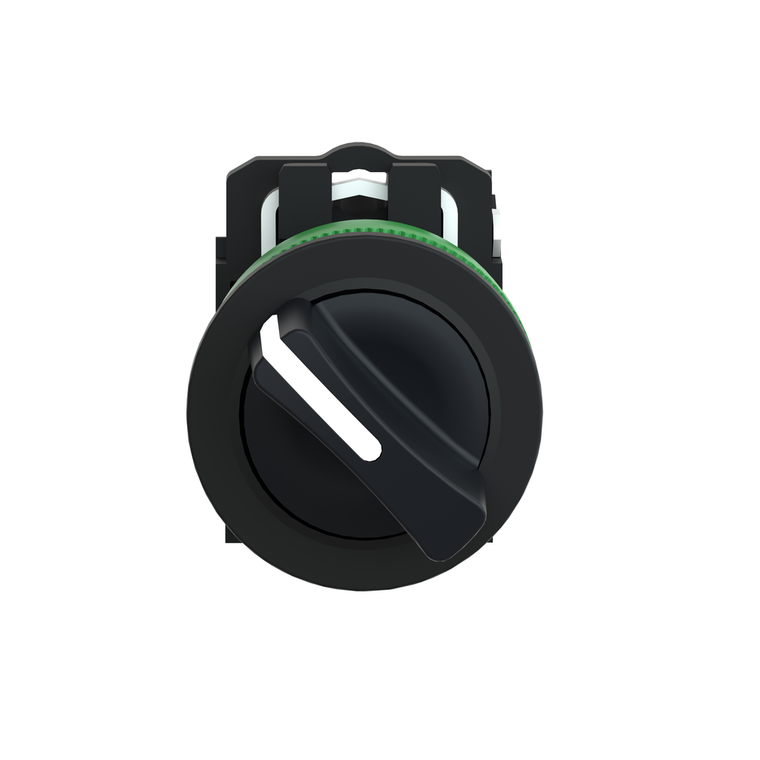

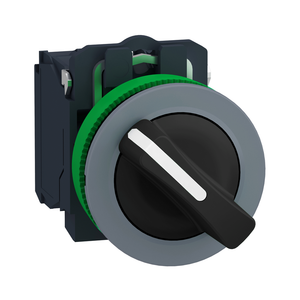

This flush mounted selector switch is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It comes with antimicrobial characteristics. It has a black standard handle with 2 positions 90 degree spring return from right to left. The contact type is 1NO slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel and the fixing collar is plactic. The weight of this selector switch is 43 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13, and 4X, IK03, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, NEMA, JIS, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
Additional Information
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
selector switch
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Sale Per Indivisible Quantity:
1
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ambient Air Temperature For Operation:
-40-70 °C
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Contact Operation:
slow-break
Depth:
73 mm
Ik Degree Of Protection:
IK03 IEC 50102
Bezel Material:
dark grey plastic
Protective Treatment:
TH
Product Certifications:
UL Listed || CSA
Mechanical Durability:
1000000 cycles
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Positive Opening:
without
Ambient Air Temperature For Storage:
-40-70 °C
Height:
42 mm
Device Short Name:
XB5F
Type Of Operator:
right to left spring return
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Terminals Description Iso N°1:
(13-14)NO
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Mounting Diameter:
30.5 mm
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Contacts Type And Composition:
1 NO
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Mercury Free:
Yes
Operator Position Information:
2 positions 90°
Warranty:
18 months
Environmental Disclosure:
ENVPEP1710010EN
Device Presentation:
complete product
Operator Profile:
black standard handle, unmarked
Electrical Shock Protection Class:
class II IEC 60536
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation:
X
Range Of Product:
Harmony XB5
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Reach Free Of Svhc:
Yes
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Standards:
IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
Contacts Usage:
standard contacts
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Shape Of Signaling Unit Head:
round
Width:
36.6 mm
Rohs Exemption Information:
Yes
Contacts Material:
silver alloy (Ag/Ni)
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Toxic Heavy Metal Free:
Yes
Circularity Profile:
ENVEOLI1710010EN
Head Type:
built-in-flush
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
