Schneider Electric XB5FK123B5 Flush Gr. Iss 2 Pos Stay Put 24 1No 1Nc

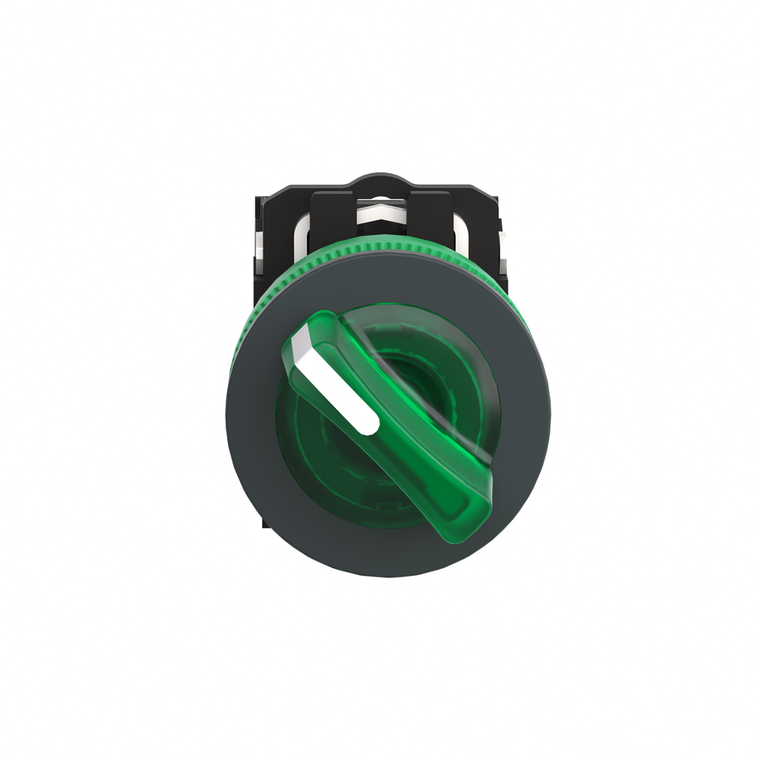

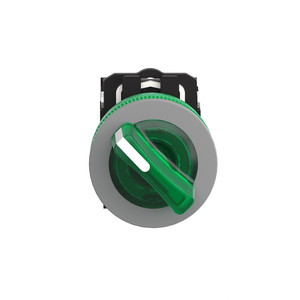

This flush mounted illuminated selector switch is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 24 V AC/DC. The source of light is a universal LED. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It has a green standard handle with 2 positions 90 degree stay put. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel and the fixing collar is plastic. The weight of this selector switch is 56 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13, and 4X, IK03, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.
- Warranty:
- 18 months
- Range Of Product:
- Harmony XB5
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Electrical Shock Protection Class:
- class II IEC 60536
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Ambient Air Temperature For Operation:
- -40-70 °C
- Terminals Description Iso N°1:
- (21-22)NC || (13-14)NO
- Sale Per Indivisible Quantity:
- 1
- Ik Degree Of Protection:
- IK03 IEC 50102
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Shape Of Signaling Unit Head:
- round
- Contacts Type And Composition:
- 1 NO + 1 NC
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Height:
- 42 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Mercury Free:
- Yes
- Protective Treatment:
- TH
- Type Of Operator:
- stay put
- Bulb Base:
- integral LED
- Bezel Material:
- dark grey plastic
- Important Message:
- Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block
- Standards:
- IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Mechanical Durability:
- 1000000 cycles
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Environmental Disclosure:
- ENVPEP1710010EN
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operator Position Information:
- 2 positions 90°
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Rohs Exemption Information:
- Yes
- Positive Opening:
- with NC contact IEC 60947-5-1 appendix K
- [Us] Rated Supply Voltage:
- 24 V AC/DC 50/60 Hz
- Product Certifications:
- UL Listed || CSA
- Product Or Component Type:
- illuminated selector switch
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Contacts Material:
- silver alloy (Ag/Ni)
- Head Type:
- built-in-flush
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Device Short Name:
- XB5F
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Contacts Usage:
- standard contacts
- Depth:
- 71 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operator Profile:
- green standard handle, unmarked
- Mounting Diameter:
- 30.5 mm
- Sustainable Offer Status:
- Green Premium product
- Contact Operation:
- slow-break
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Width:
- 36.6 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Supply Voltage Limits:
- 21.6-26.4 V AC
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Light Source:
- universal LED
- Circularity Profile:
- ENVEOLI1710010EN
- Device Presentation:
- complete product
- China Rohs Regulation:
- X
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
