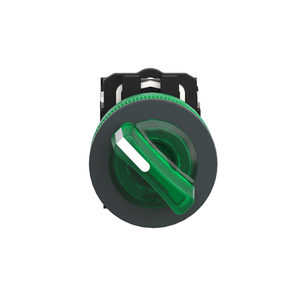

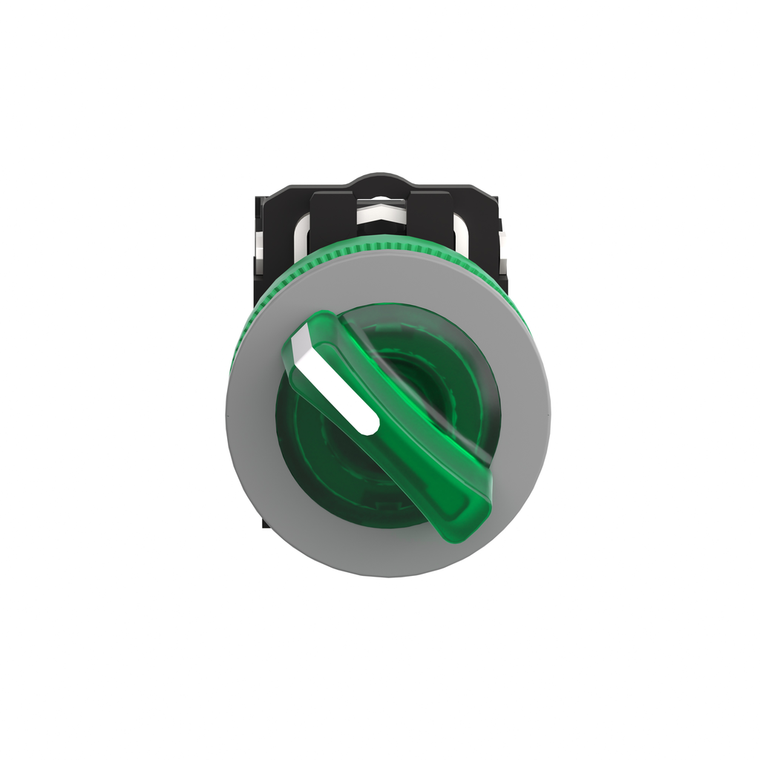

Schneider Electric XB5FK123M5C0 Flush Gr. Iss 2 Pos Stay Put 230 1No 1Nc

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5FK123M5C0 Flush Gr. Iss 2 Pos Stay Put 230 1No 1Nc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FK123M5C0

UPC:

3606489760755

MPN:

Condition:

New

Range Of Product:

Harmony XB5

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Device Presentation:

complete product

Width:

36.6 mm

Depth:

71 mm

China Rohs Regulation:

X

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Standards:

IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Shape Of Signaling Unit Head:

round

Product Or Component Type:

illuminated selector switch

[Us] Rated Supply Voltage:

230...240 V AC 50/60 Hz

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Operator Position Information:

2 positions 90°

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Bulb Base:

integral LED

Head Type:

built-in-flush

Height:

42 mm

Mechanical Durability:

1000000 cycles

Contact Operation:

slow-break

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sale Per Indivisible Quantity:

1

Ambient Air Temperature For Storage:

-40-70 °C

Protective Treatment:

TH

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Device Short Name:

XB5F

Ambient Air Temperature For Operation:

-40-70 °C

Ik Degree Of Protection:

IK03 IEC 50102

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Positive Opening:

with NC contact IEC 60947-5-1 appendix K

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Electrical Shock Protection Class:

class II IEC 60536

Light Source:

universal LED

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Rohs Exemption Information:

Yes

Operator Profile:

green standard handle, unmarked || green handle, unmarked

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Mounting Diameter:

30.5 mm

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Contacts Usage:

standard contacts

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Type Of Operator:

stay put || stay put handle

Bezel Material:

plastic colour plated grey

Contacts Material:

silver alloy (Ag/Ni)

Product Certifications:

UL Listed || CSA

Mercury Free:

Yes

Supply Voltage Limits:

195-264 V AC

Contacts Type And Composition:

1 NO + 1 NC

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m
