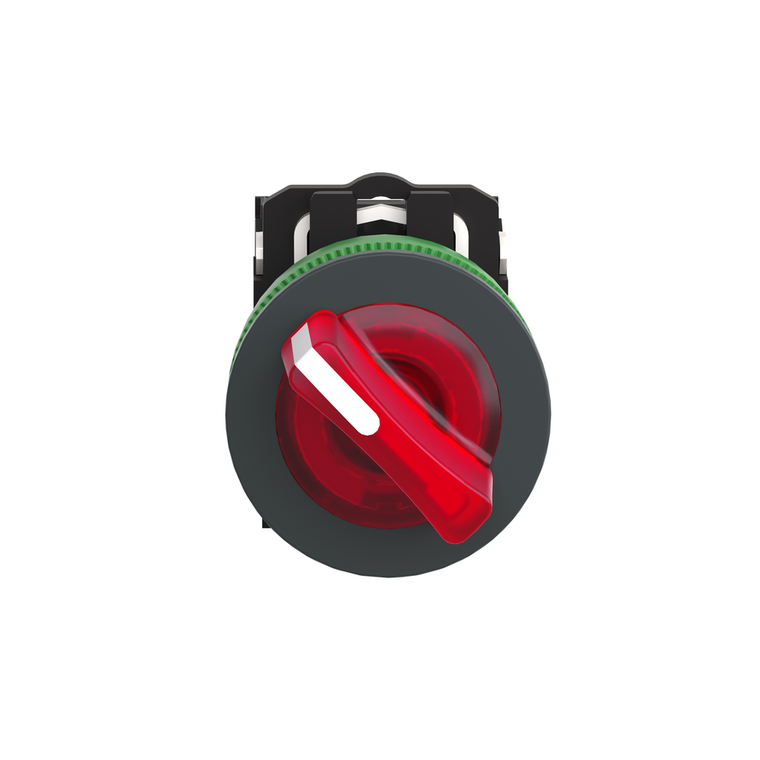

Schneider Electric XB5FK124B5 Flush Red Iss 2 Pos Stay Put 24 1No 1Nc

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5FK124B5 Flush Red Iss 2 Pos Stay Put 24 1No 1Nc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FK124B5

UPC:

3606481360700

MPN:

Condition:

New

Contacts Material:

silver alloy (Ag/Ni)

Ambient Air Temperature For Storage:

-40-70 °C

Bulb Base:

integral LED

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Ambient Air Temperature For Operation:

-40-70 °C

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Operator Position Information:

2 positions 90°

Device Short Name:

XB5F

Width:

36.6 mm

China Rohs Regulation:

X

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ik Degree Of Protection:

IK03 IEC 50102

Shape Of Signaling Unit Head:

round

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Device Presentation:

complete product

Electrical Shock Protection Class:

class II IEC 60536

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Environmental Disclosure:

ENVPEP1710010EN

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Standards:

IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Mechanical Durability:

1000000 cycles

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Bezel Material:

dark grey plastic

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Rohs Exemption Information:

Yes

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Product Certifications:

UL Listed || CSA

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Range Of Product:

Harmony XB5

Sustainable Offer Status:

Green Premium product

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Circularity Profile:

ENVEOLI1710010EN

Warranty:

18 months

Contact Operation:

slow-break

Operator Profile:

red standard handle, unmarked

Mercury Free:

Yes

Light Source:

universal LED

Contacts Usage:

standard contacts

Protective Treatment:

TH

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Type Of Operator:

stay put

Product Or Component Type:

illuminated selector switch

Depth:

71 mm

Sale Per Indivisible Quantity:

1

Mounting Diameter:

30.5 mm

Supply Voltage Limits:

21.6-26.4 V AC

Height:

42 mm

Important Message:

Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block

Positive Opening:

with NC contact IEC 60947-5-1 appendix K

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Head Type:

built-in-flush

Contacts Type And Composition:

1 NO + 1 NC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)
