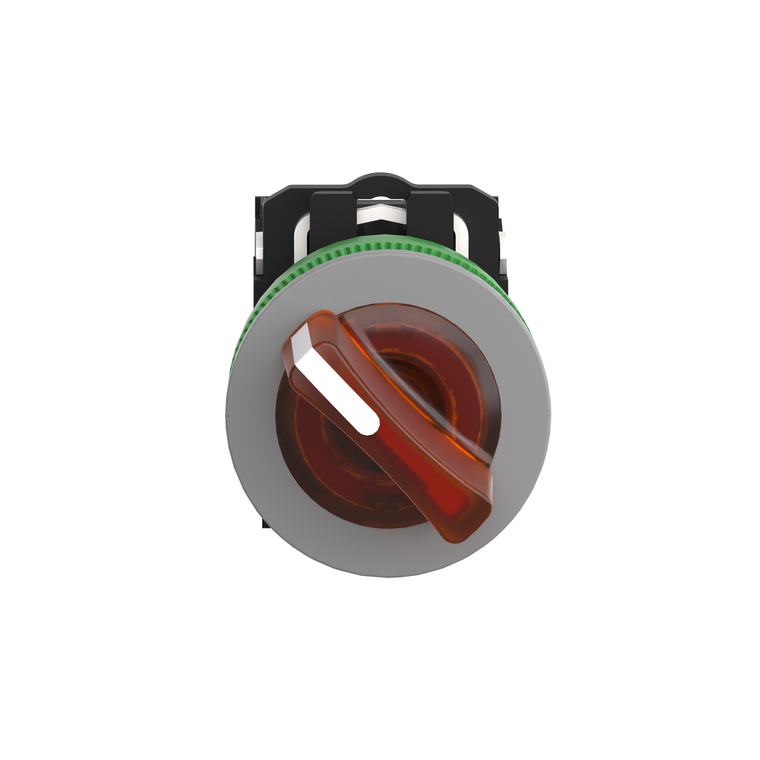

Schneider Electric XB5FK125B5C0 Flush Or. Iss 2 Pos Stay Put 24 1No 1Nc

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5FK125B5C0 Flush Or. Iss 2 Pos Stay Put 24 1No 1Nc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FK125B5C0

UPC:

3606489760830

MPN:

Condition:

New

China Rohs Regulation:

X

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ambient Air Temperature For Storage:

-40-70 °C

Electrical Shock Protection Class:

class II IEC 60536

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Mechanical Durability:

1000000 cycles

Contacts Usage:

standard contacts

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Product Certifications:

UL Listed || CSA

Supply Voltage Limits:

21.6-26.4 V AC

Standards:

IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Ambient Air Temperature For Operation:

-40-70 °C

Mercury Free:

Yes

Range Of Product:

Harmony XB5

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Contacts Type And Composition:

1 NO + 1 NC

Device Short Name:

XB5F

Mounting Diameter:

30.5 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Protective Treatment:

TH

Shape Of Signaling Unit Head:

round

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Device Presentation:

complete product

Positive Opening:

with NC contact IEC 60947-5-1 appendix K

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Important Message:

Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Width:

36.6 mm

Depth:

71 mm

Operator Position Information:

2 positions 90°

Ik Degree Of Protection:

IK03 IEC 50102

Bulb Base:

integral LED

Operator Profile:

orange standard handle, unmarked || orange handle, unmarked

Sale Per Indivisible Quantity:

1

Type Of Operator:

stay put handle || stay put

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Bezel Material:

plastic colour plated grey

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Light Source:

universal LED

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Head Type:

built-in-flush

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Contact Operation:

slow-break

Contacts Material:

silver alloy (Ag/Ni)

Product Or Component Type:

illuminated selector switch

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Height:

42 mm

Rohs Exemption Information:

Yes

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz
