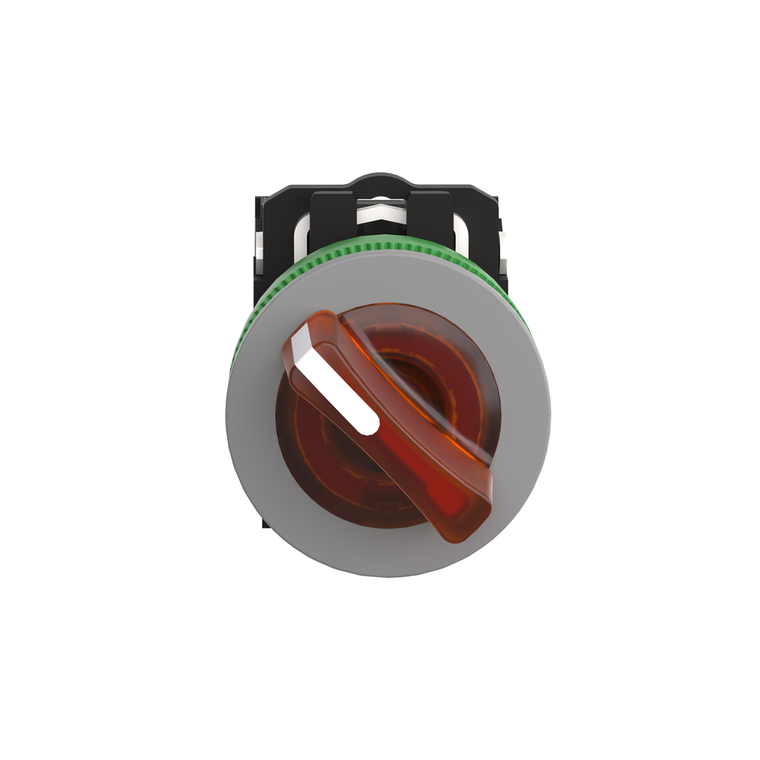

Schneider Electric XB5FK125M5C0 Flush Or. Iss 2 Pos Stay Put 230 1No 1Nc

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5FK125M5C0 Flush Or. Iss 2 Pos Stay Put 230 1No 1Nc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FK125M5C0

UPC:

3606489760878

MPN:

Condition:

New

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Mercury Free:

Yes

Mechanical Durability:

1000000 cycles

China Rohs Regulation:

X

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Operator Profile:

orange standard handle, unmarked || orange handle, unmarked

Sale Per Indivisible Quantity:

1

Range Of Product:

Harmony XB5

Product Certifications:

UL Listed || CSA

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Rohs Exemption Information:

Yes

[Us] Rated Supply Voltage:

230...240 V AC 50/60 Hz

Bezel Material:

plastic colour plated grey

Shape Of Signaling Unit Head:

round

Device Short Name:

XB5F

Operator Position Information:

2 positions 90°

Type Of Operator:

stay put || stay put handle

Product Or Component Type:

illuminated selector switch

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Ambient Air Temperature For Storage:

-40-70 °C

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Standards:

IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Contacts Material:

silver alloy (Ag/Ni)

Width:

36.6 mm

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ambient Air Temperature For Operation:

-40-70 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Head Type:

built-in-flush

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Height:

42 mm

Bulb Base:

integral LED

Mounting Diameter:

30.5 mm

Contact Operation:

slow-break

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Positive Opening:

with NC contact IEC 60947-5-1 appendix K

Contacts Type And Composition:

1 NO + 1 NC

Protective Treatment:

TH

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Contacts Usage:

standard contacts

Ik Degree Of Protection:

IK03 IEC 50102

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Light Source:

universal LED

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Supply Voltage Limits:

195-264 V AC

Depth:

71 mm

Electrical Shock Protection Class:

class II IEC 60536

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Device Presentation:

complete product

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Ip Degree Of Protection:

IP66 IEC 60529 || IP67
