Schneider Electric XB5FK133G5 Flush Gr. Iss 3 Pos Stay Put 120 1No 1Nc

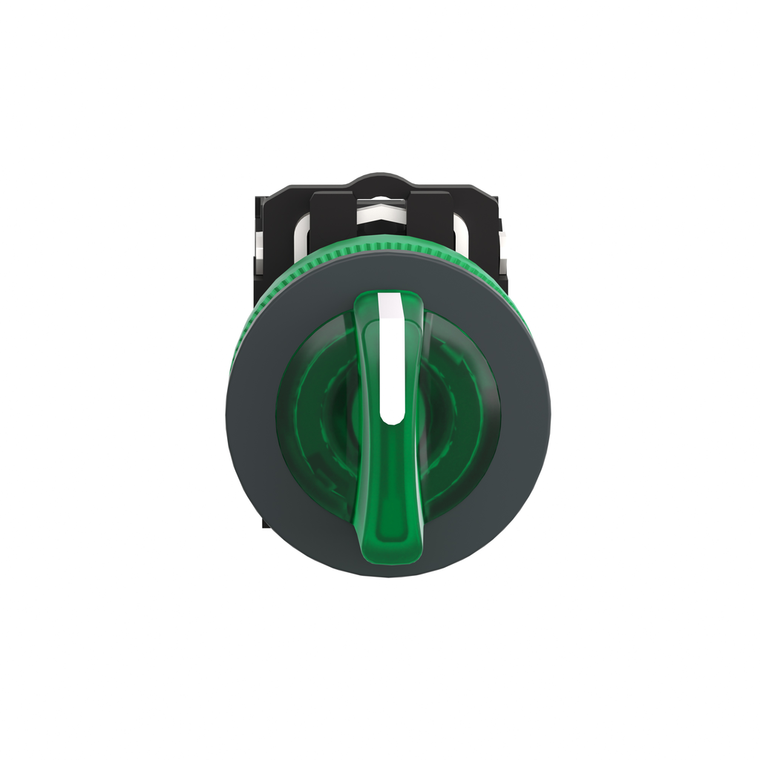

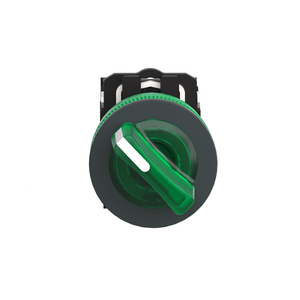

This flush mounted illuminated selector switch is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 110 V to 120 V AC. The source of light is a universal LED. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It has a green standard handle with 3 positions ± 45 degree stay put. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel and the fixing collar is plastic. The weight of this selector switch is 56 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13, and 4X, IK03, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Type Of Operator:
- stay put
- Range Of Product:
- Harmony XB5
- Bulb Base:
- integral LED
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Standards:
- IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Ik Degree Of Protection:
- IK03 IEC 50102
- Contacts Material:
- silver alloy (Ag/Ni)
- China Rohs Regulation:
- X
- Light Source:
- universal LED
- Mechanical Durability:
- 500000 cycles
- Rohs Exemption Information:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sale Per Indivisible Quantity:
- 1
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Supply Voltage Limits:
- 94-132 V AC
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Operator Profile:
- green standard handle, unmarked
- Positive Opening:
- with NC contact IEC 60947-5-1 appendix K
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Head Type:
- built-in-flush
- Device Short Name:
- XB5F
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Bezel Material:
- dark grey plastic
- Contacts Type And Composition:
- 1 NO + 1 NC
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
- Ambient Air Temperature For Storage:
- -40-70 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Contacts Usage:
- standard contacts
- Contact Operation:
- slow-break
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operator Position Information:
- 3 positions +/- 45°
- Sustainable Offer Status:
- Green Premium product
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Mercury Free:
- Yes
- Depth:
- 71 mm
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- Terminals Description Iso N°1:
- (21-22)NC || (13-14)NO
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Presentation:
- complete product
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Width:
- 36.6 mm
- Shape Of Signaling Unit Head:
- round
- Warranty:
- 18 months
- Protective Treatment:
- TH
- Height:
- 42 mm
- Mounting Diameter:
- 30.5 mm
- Electrical Shock Protection Class:
- class II IEC 60536
- Important Message:
- Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- [Us] Rated Supply Voltage:
- 110...120 V AC 50/60 Hz
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Product Certifications:
- UL Listed || CSA
- Circularity Profile:
- ENVEOLI1710010EN
- Ambient Air Temperature For Operation:
- -40-70 °C
- Product Or Component Type:
- illuminated selector switch
