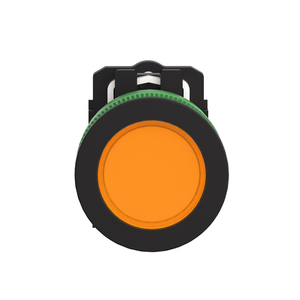

Schneider Electric XB5FVB5C0 Flush Complete Pilot Light 24V Or.

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5FVB5C0 Flush Complete Pilot Light 24V Or.

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FVB5C0

UPC:

3606489761165

MPN:

Condition:

New

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Light Source:

universal LED

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Surge Withstand:

1 kV IEC 61000-4-5

Bezel Material:

plastic colour plated grey

Ambient Air Temperature For Operation:

-40-70 °C

China Rohs Regulation:

X

Gcr Bridge:

XB5FVCUST02

Mounting Diameter:

30.5 mm

Cap/Operator Or Lens Colour:

orange

Signalling Type:

steady

Electromagnetic Emission:

class B IEC 55011

Service Life:

100000 h at rated voltage and 25 °C

Depth:

55 mm

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Product Certifications:

UL Listed || CSA

Mercury Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Fixing Collar Material:

plastic

Current Consumption:

18 mA

Device Presentation:

complete product

Width:

36.6 mm

Terminals Description Iso N°1:

(X1-X2)PL

Height:

42 mm

Light Source Colour:

orange

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Ik Degree Of Protection:

IK03 IEC 50102

Head Type:

built-in-flush

Product Or Component Type:

pilot light

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

Overvoltage Category:

class II IEC 60536

Device Short Name:

XB5F

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Important Message:

Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block

Bulb Base:

integral LED

Standards:

JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Operator Additional Information:

with plain lens

Rohs Exemption Information:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529

Protective Treatment:

TH

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Ambient Air Temperature For Storage:

-40-70 °C

Net Weight:

0.038 kg

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Range Of Product:

Harmony XB5

Sale Per Indivisible Quantity:

1

Shape Of Signaling Unit Head:

round

Datasheet:

View
