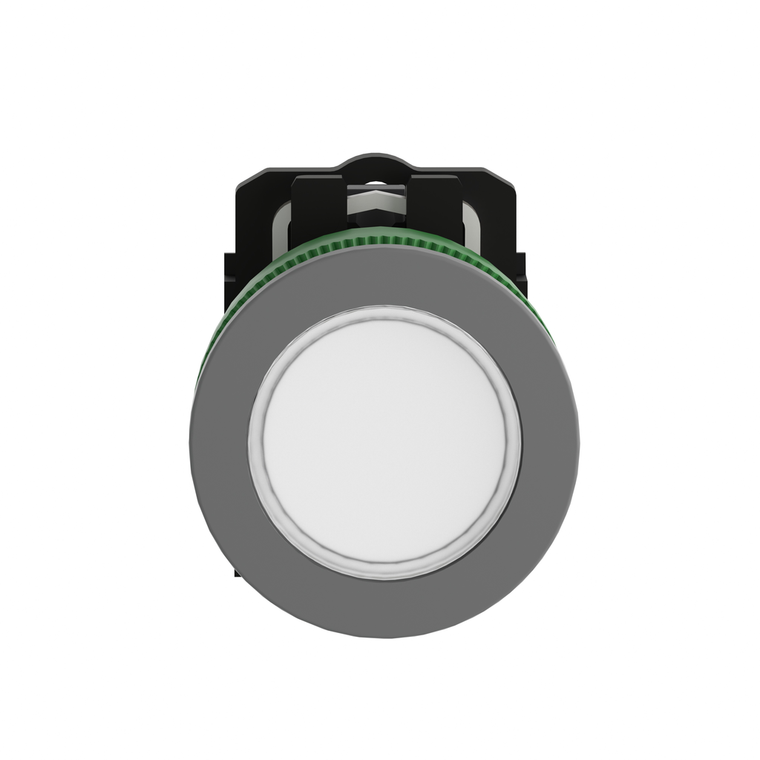

Schneider Electric XB5FVG1C0 Flush Compl. Pilot Light 110 120V White

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5FVG1C0 Flush Compl. Pilot Light 110 120V White

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FVG1C0

UPC:

3606489761202

MPN:

Condition:

New

Shape Of Signaling Unit Head:

round

Net Weight:

0.038 kg

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Terminals Description Iso N°1:

(X1-X2)PL

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Light Source Colour:

white

Bezel Material:

plastic colour plated grey

Light Source:

universal LED

Electromagnetic Emission:

class B IEC 55011

Ambient Air Temperature For Storage:

-40-70 °C

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Important Message:

Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block

Width:

36.6 mm

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Standards:

JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Bulb Base:

integral LED

Surge Withstand:

1 kV IEC 61000-4-5

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Sale Per Indivisible Quantity:

1

Overvoltage Category:

class II IEC 60536

Height:

42 mm

Fixing Collar Material:

plastic

Mounting Diameter:

30.5 mm

Device Presentation:

complete product

Supply Voltage Limits:

100-132 V AC

Ik Degree Of Protection:

IK03 IEC 50102

Protective Treatment:

TH

Operator Additional Information:

with plain lens

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Head Type:

built-in-flush

Depth:

55 mm

Signalling Type:

steady

Mercury Free:

Yes

Range Of Product:

Harmony XB5

Rohs Exemption Information:

Yes

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Gcr Bridge:

XB5FVCUST03

Cap/Operator Or Lens Colour:

white

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Device Short Name:

XB5F

Product Certifications:

UL Listed || CSA

Product Or Component Type:

pilot light

Ambient Air Temperature For Operation:

-40-70 °C

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

China Rohs Regulation:

X

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Service Life:

100000 h at rated voltage and 25 °C

Current Consumption:

14 mA

Datasheet:

View
