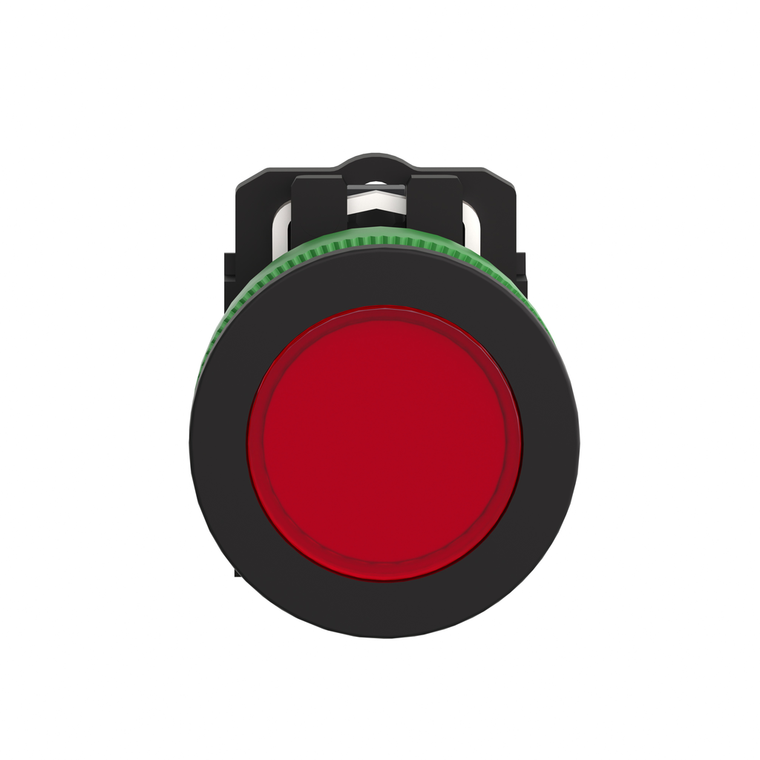

Schneider Electric XB5FVG4 Flush Complete Pilot Light 110 120V Red

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5FVG4 Flush Complete Pilot Light 110 120V Red

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FVG4

UPC:

3606481360922

MPN:

Condition:

New

Ambient Air Temperature For Storage:

-40-70 °C

Circularity Profile:

ENVEOLI1710010EN

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Short Name:

XB5F

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Current Consumption:

14 mA

Supply Voltage Limits:

100-132 V AC

Ik Degree Of Protection:

IK03 IEC 50102

Cap/Operator Or Lens Colour:

red

China Rohs Regulation:

X

Light Source Colour:

red

Environmental Disclosure:

ENVPEP1710010EN

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

Product Or Component Type:

pilot light

Product Certifications:

UL Listed || CSA

Electromagnetic Emission:

class B IEC 55011

Depth:

55 mm

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Compatibility Code:

XB5

Shape Of Signaling Unit Head:

round

Signalling Type:

steady

Terminals Description Iso N°1:

(X1-X2)PL

Bulb Base:

integral LED

Operator Additional Information:

with plain lens

Width:

36.6 mm

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

Bezel Material:

dark grey plastic

Ambient Air Temperature For Operation:

-40-70 °C

Fixing Collar Material:

plastic

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Service Life:

100000 h at rated voltage and 25 °C

Mounting Diameter:

30.5 mm

Protective Treatment:

TH

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Mercury Free:

Yes

Sustainable Offer Status:

Green Premium product

Gcr Bridge:

XB5FVCUST01

Net Weight:

0.038 kg

Standards:

JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011

Height:

42 mm

Range Of Product:

Harmony XB5

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Surge Withstand:

1 kV IEC 61000-4-5

Important Message:

Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block

Rohs Exemption Information:

Yes

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Sale Per Indivisible Quantity:

1

Device Presentation:

complete product

Head Type:

built-in-flush

Light Source:

universal LED

Overvoltage Category:

class II IEC 60536
