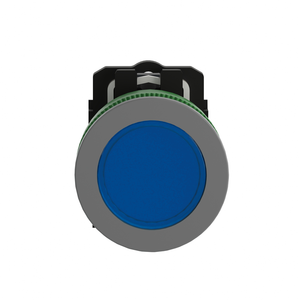

Schneider Electric XB5FVG6 Flush Complete Pilot Light 110 120V Blue

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5FVG6 Flush Complete Pilot Light 110 120V Blue

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FVG6

UPC:

3606481360946

MPN:

Condition:

New

Terminals Description Iso N°1:

(X1-X2)PL

Environmental Disclosure:

ENVPEP1710010EN

Light Source Colour:

blue

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Protective Treatment:

TH

Height:

42 mm

Range Of Product:

Harmony XB5

Overvoltage Category:

class II IEC 60536

Device Presentation:

complete product

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Ambient Air Temperature For Operation:

-40-70 °C

Standards:

JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Supply Voltage Limits:

100-132 V AC

Cap/Operator Or Lens Colour:

blue

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Service Life:

100000 h at rated voltage and 25 °C

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Device Short Name:

XB5F

Light Source:

universal LED

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Current Consumption:

14 mA

Bulb Base:

integral LED

China Rohs Regulation:

X

Net Weight:

0.038 kg

Head Type:

built-in-flush

Compatibility Code:

XB5

Ik Degree Of Protection:

IK03 IEC 50102

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mercury Free:

Yes

Signalling Type:

steady

Sale Per Indivisible Quantity:

1

Fixing Collar Material:

plastic

Operator Additional Information:

with plain lens

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Width:

36.6 mm

Gcr Bridge:

XB5FVCUST01

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Bezel Material:

dark grey plastic

Depth:

55 mm

Ambient Air Temperature For Storage:

-40-70 °C

Electromagnetic Emission:

class B IEC 55011

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Surge Withstand:

1 kV IEC 61000-4-5

Shape Of Signaling Unit Head:

round

Circularity Profile:

ENVEOLI1710010EN

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Or Component Type:

pilot light

Product Certifications:

UL Listed || CSA

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Mounting Diameter:

30.5 mm
