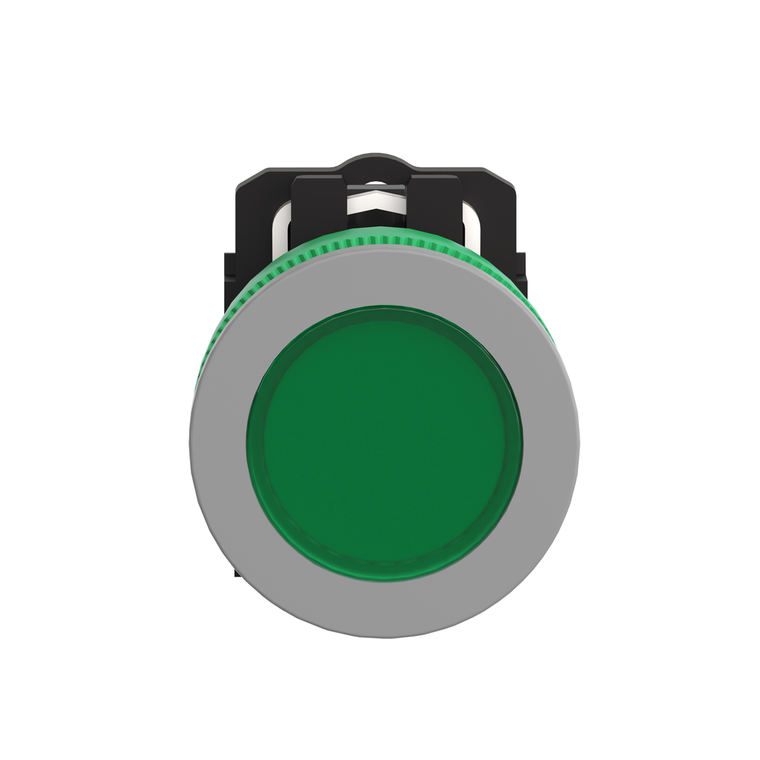

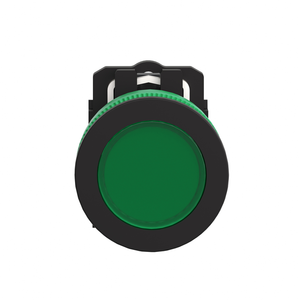

Schneider Electric XB5FVM3C0 Flush Compl. Pilot Light 230 240V Green

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5FVM3C0 Flush Compl. Pilot Light 230 240V Green

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FVM3C0

UPC:

3606489761325

MPN:

Condition:

New

Ik Degree Of Protection:

IK03 IEC 50102

Electromagnetic Emission:

class B IEC 55011

Product Certifications:

UL Listed || CSA

Supply Voltage Limits:

195-264 V AC

Gcr Bridge:

XB5FVCUST05

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Fixing Collar Material:

plastic

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529

Important Message:

Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block

Product Or Component Type:

pilot light

[Us] Rated Supply Voltage:

230...240 V AC 50/60 Hz

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ambient Air Temperature For Storage:

-40-70 °C

Overvoltage Category:

class II IEC 60536

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Rohs Exemption Information:

Yes

Mounting Diameter:

30.5 mm

Current Consumption:

14 mA

Light Source Colour:

green

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Depth:

55 mm

China Rohs Regulation:

X

Mercury Free:

Yes

Ambient Air Temperature For Operation:

-40-70 °C

Device Presentation:

complete product

Device Short Name:

XB5F

Sale Per Indivisible Quantity:

1

Surge Withstand:

1 kV IEC 61000-4-5

Signalling Type:

steady

Standards:

JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1

Range Of Product:

Harmony XB5

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Light Source:

universal LED

Service Life:

100000 h at rated voltage and 25 °C

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Height:

42 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Width:

36.6 mm

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Net Weight:

0.038 kg

Bezel Material:

plastic colour plated grey

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Operator Additional Information:

with plain lens

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Cap/Operator Or Lens Colour:

green

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Bulb Base:

integral LED

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

Head Type:

built-in-flush

Terminals Description Iso N°1:

(X1-X2)PL

Protective Treatment:

TH

Shape Of Signaling Unit Head:

round
