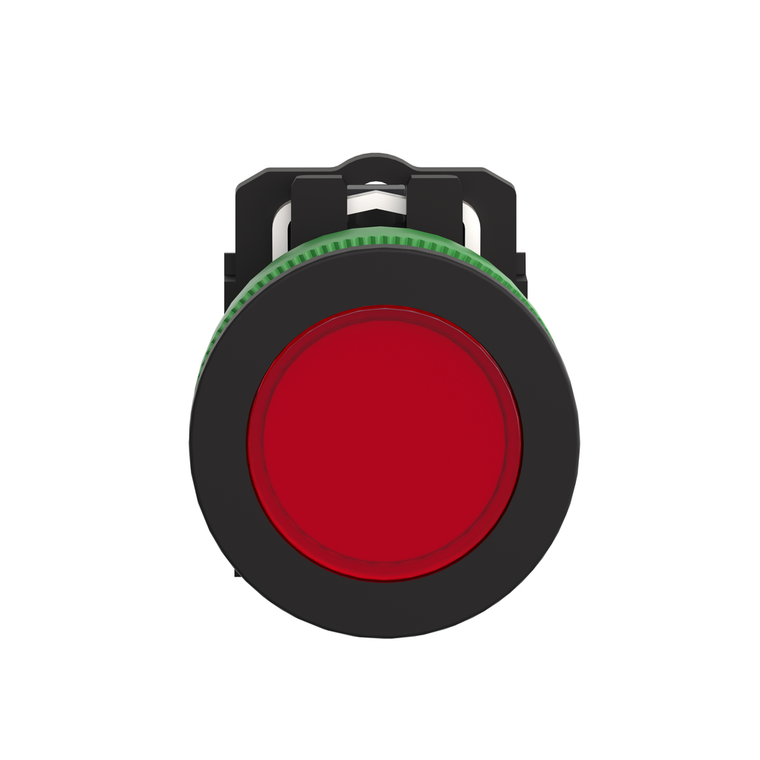

Schneider Electric XB5FVM4 Flush Complete Pilot Light 230 240V Red

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5FVM4 Flush Complete Pilot Light 230 240V Red

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FVM4

UPC:

3606481360977

MPN:

Condition:

New

Device Presentation:

complete product

Sale Per Indivisible Quantity:

1

Important Message:

Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Signalling Type:

steady

Product Certifications:

UL Listed || CSA

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Range Of Product:

Harmony XB5

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Bulb Base:

integral LED

[Us] Rated Supply Voltage:

230...240 V AC 50/60 Hz

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Overvoltage Category:

class II IEC 60536

Standards:

JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011

Electromagnetic Emission:

class B IEC 55011

Device Short Name:

XB5F

Supply Voltage Limits:

195-264 V AC

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

Light Source Colour:

red

Current Consumption:

14 mA

Product Or Component Type:

pilot light

Operator Additional Information:

with plain lens

Shape Of Signaling Unit Head:

round

Protective Treatment:

TH

Width:

36.6 mm

Mercury Free:

Yes

Net Weight:

0.038 kg

Height:

42 mm

Cap/Operator Or Lens Colour:

red

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Service Life:

100000 h at rated voltage and 25 °C

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Ik Degree Of Protection:

IK03 IEC 50102

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

China Rohs Regulation:

X

Environmental Disclosure:

ENVPEP1710010EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Mounting Diameter:

30.5 mm

Surge Withstand:

1 kV IEC 61000-4-5

Compatibility Code:

XB5

Sustainable Offer Status:

Green Premium product

Ambient Air Temperature For Storage:

-40-70 °C

Fixing Collar Material:

plastic

Light Source:

universal LED

Head Type:

built-in-flush

Circularity Profile:

ENVEOLI1710010EN

Terminals Description Iso N°1:

(X1-X2)PL

Bezel Material:

dark grey plastic

Ambient Air Temperature For Operation:

-40-70 °C

Gcr Bridge:

XB5FVCUST04

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Depth:

55 mm
