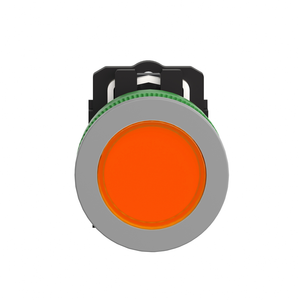

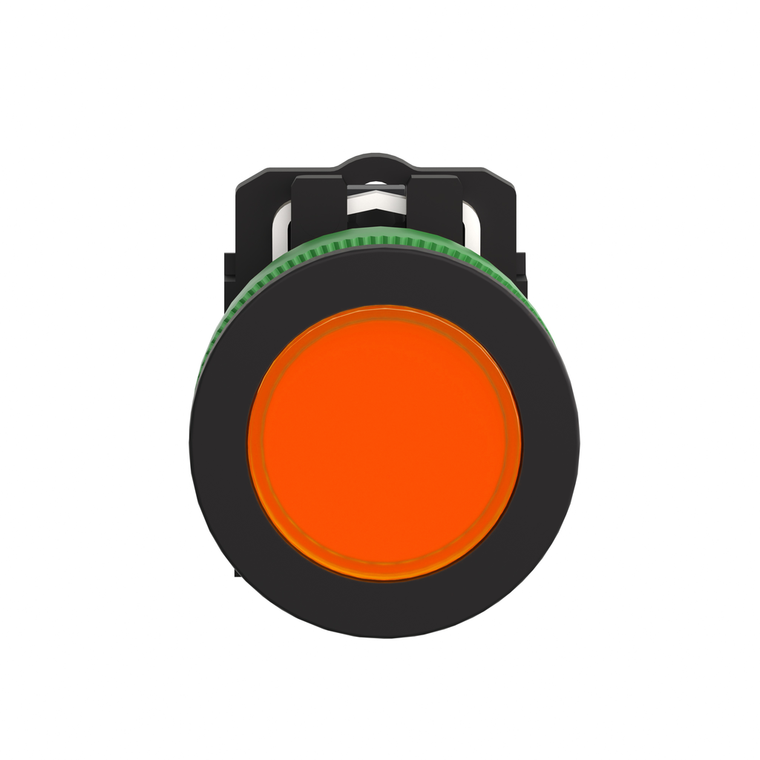

Schneider Electric XB5FVM5 Flush Complete Pilot Light 230 240V Or.

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5FVM5 Flush Complete Pilot Light 230 240V Or.

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FVM5

UPC:

3606481360984

MPN:

Condition:

New

Compatibility Code:

XB5

Net Weight:

0.038 kg

Device Presentation:

complete product

Mounting Diameter:

30.5 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Cap/Operator Or Lens Colour:

orange

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Product Certifications:

UL Listed || CSA

Gcr Bridge:

XB5FVCUST04

Bulb Base:

integral LED

Light Source Colour:

orange

Supply Voltage Limits:

195-264 V AC

Surge Withstand:

1 kV IEC 61000-4-5

Mercury Free:

Yes

Electromagnetic Emission:

class B IEC 55011

Circularity Profile:

ENVEOLI1710010EN

[Us] Rated Supply Voltage:

230...240 V AC 50/60 Hz

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Light Source:

universal LED

Rohs Exemption Information:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Height:

42 mm

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Overvoltage Category:

class II IEC 60536

Signalling Type:

steady

China Rohs Regulation:

X

Operator Additional Information:

with plain lens

Ambient Air Temperature For Storage:

-40-70 °C

Bezel Material:

dark grey plastic

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Depth:

55 mm

Service Life:

100000 h at rated voltage and 25 °C

Width:

36.6 mm

Head Type:

built-in-flush

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Fixing Collar Material:

plastic

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Sale Per Indivisible Quantity:

1

Range Of Product:

Harmony XB5

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Current Consumption:

14 mA

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Shape Of Signaling Unit Head:

round

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

Product Or Component Type:

pilot light

Device Short Name:

XB5F

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Terminals Description Iso N°1:

(X1-X2)PL

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Sustainable Offer Status:

Green Premium product

Ambient Air Temperature For Operation:

-40-70 °C

Environmental Disclosure:

ENVPEP1710010EN

Standards:

JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011

Ik Degree Of Protection:

IK03 IEC 50102

Protective Treatment:

TH
