Schneider Electric XB5FW31M5 Flush White Cap Ipb Led 230 1No 1Nc Scr
Schneider Electric
$119.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

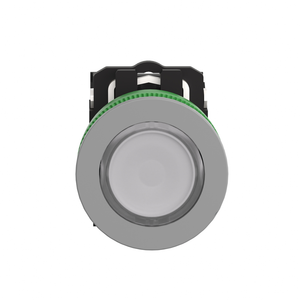

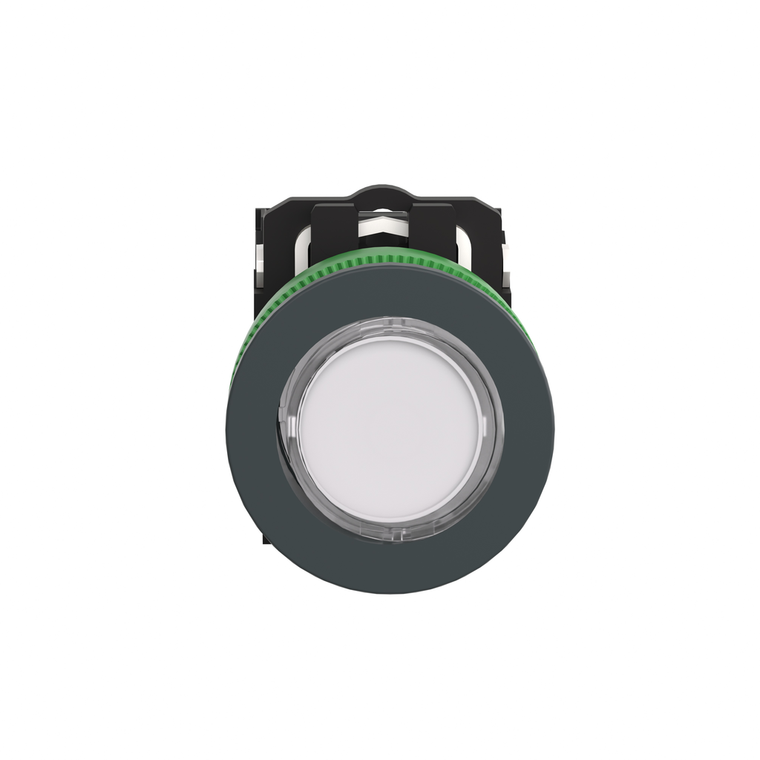

Schneider Electric XB5FW31M5 Flush White Cap Ipb Led 230 1No 1Nc Scr
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This flush mounted illuminated pushbutton is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 230 V to 240 V AC. Customized marking option through web customization tool in Schneider Electric website is available. Improved ergonomics and aesthetics due to flush mount design. It comes with antimicrobial characteristics. It has a plain lens and the source of light is a universal LED. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return. The shape of the head is round and white. The bezel and the fixing collar is plastic. The weight of this pushbutton is 52 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted plastic circular blanking plug, metal ring, protective washer, and plastic flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
- Positive Opening:
- with IEC 60947-5-1 appendix K
- Resistance To Electromagnetic Fields:
- 10 V/m IEC 61000-4-3
- Standards:
- IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1 || ISO 22196:2011 || ISO 21702
- Supply Voltage Limits:
- 195-264 V AC
- Operating Travel:
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Surge Withstand:
- 1 kV IEC 61000-4-5
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Terminals Description Iso N°1:
- (21-22)NC || (13-14)NO
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Mounting Diameter:
- 30.5 mm
- Height:
- 42 mm
- Contacts Type And Composition:
- 1 NO + 1 NC
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Electromagnetic Emission:
- class B IEC 55011
- Bezel Material:
- dark grey plastic
- [Us] Rated Supply Voltage:
- 220...240 V AC 50/60 Hz
- Width:
- 36.6 mm
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Depth:
- 55 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- Device Presentation:
- complete product
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Mercury Free:
- Yes
- Important Message:
- Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block
- Fixing Collar Material:
- plastic
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Operator Additional Information:
- with plain lens
- Head Type:
- built-in-flush
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- Bulb Base:
- integral LED
- Ik Degree Of Protection:
- IK03 IEC 50102
- Sustainable Offer Status:
- Green Premium product
- Cap/Operator Or Lens Colour:
- white
- Contacts Usage:
- standard contacts
- Current Consumption:
- 14 mA
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Signalling Type:
- steady
- Device Short Name:
- XB5F
- Operator Profile:
- white flush, unmarked
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Protective Treatment:
- TH
- Contact Operation:
- slow-break
- Service Life:
- 100000 h at rated voltage and 25 °C
- Overvoltage Category:
- class II IEC 60536
- Product Certifications:
- UL Listed || CSA
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Environmental Disclosure:
- ENVPEP1710010EN
- Mechanical Durability:
- 10000000 cycles
- Operating Force:
- 3.5 N NC changing electrical state || 3.8 N
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Operation:
- -40-70 °C
- China Rohs Regulation:
- X
- Range Of Product:
- Harmony XB5
- Type Of Operator:
- spring return
- Sale Per Indivisible Quantity:
- 1
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Electrical Reliability:
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
- Light Source:
- universal LED
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Circularity Profile:
- ENVEOLI1710010EN
- Product Or Component Type:
- illuminated push-button
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Contacts Material:
- silver alloy (Ag/Ni)
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Shape Of Signaling Unit Head:
- round
- Datasheet:
- View
