Schneider Electric XB5FW31M5C0 Flush White Cap Ipb Led 230 1No 1Nc Scr
Schneider Electric
$73.37
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

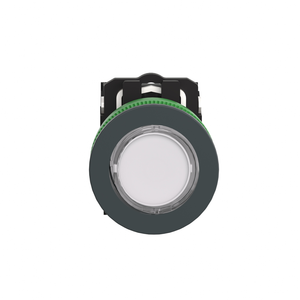

This flush mounted illuminated pushbutton is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 230 V AC. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. It has a plain lens and the source of light is a universal LED. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return. The shape of the head is round and white. The bezel is plastic color plated grey and the fixing collar is plastic. The weight of this pushbutton is 52 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted plastic circular blanking plug, metal ring, protective washer, and plastic flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.
- Operator Profile:
- white flush, unmarked
- Overvoltage Category:
- class II IEC 60536
- Bulb Base:
- integral LED
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Presentation:
- complete product
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Sale Per Indivisible Quantity:
- 1
- Positive Opening:
- with IEC 60947-5-1 appendix K
- Terminals Description Iso N°1:
- (21-22)NC || (13-14)NO
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Mounting Diameter:
- 30.5 mm
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- Service Life:
- 100000 h at rated voltage and 25 °C
- Surge Withstand:
- 1 kV IEC 61000-4-5
- Mercury Free:
- Yes
- Mechanical Durability:
- 10000000 cycles
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cap/Operator Or Lens Colour:
- white
- Product Or Component Type:
- illuminated push-button
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Contact Operation:
- slow-break
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Head Type:
- built-in-flush
- Fixing Collar Material:
- plastic
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Current Consumption:
- 14 mA
- Shape Of Signaling Unit Head:
- round
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Contacts Type And Composition:
- 1 NO + 1 NC
- Light Source:
- universal LED
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- China Rohs Regulation:
- X
- Electrical Reliability:
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
- Supply Voltage Limits:
- 195-264 V AC
- Resistance To Electromagnetic Fields:
- 10 V/m IEC 61000-4-3
- Operating Force:
- 3.5 N NC changing electrical state || 3.8 N
- Product Certifications:
- UL Listed || CSA
- Contacts Material:
- silver alloy (Ag/Ni)
- Type Of Operator:
- spring return
- Standards:
- IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Range Of Product:
- Harmony XB5
- Depth:
- 55 mm
- Electromagnetic Emission:
- class B IEC 55011
- Operating Travel:
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Height:
- 42 mm
- Operator Additional Information:
- with plain lens
- Protective Treatment:
- TH
- Ik Degree Of Protection:
- IK03 IEC 50102
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Device Short Name:
- XB5F
- Width:
- 36.6 mm
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Bezel Material:
- plastic colour plated grey
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Contacts Usage:
- standard contacts
- [Us] Rated Supply Voltage:
- 220...240 V AC 50/60 Hz
- Signalling Type:
- steady
