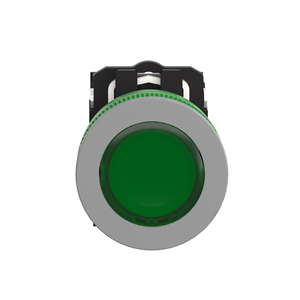

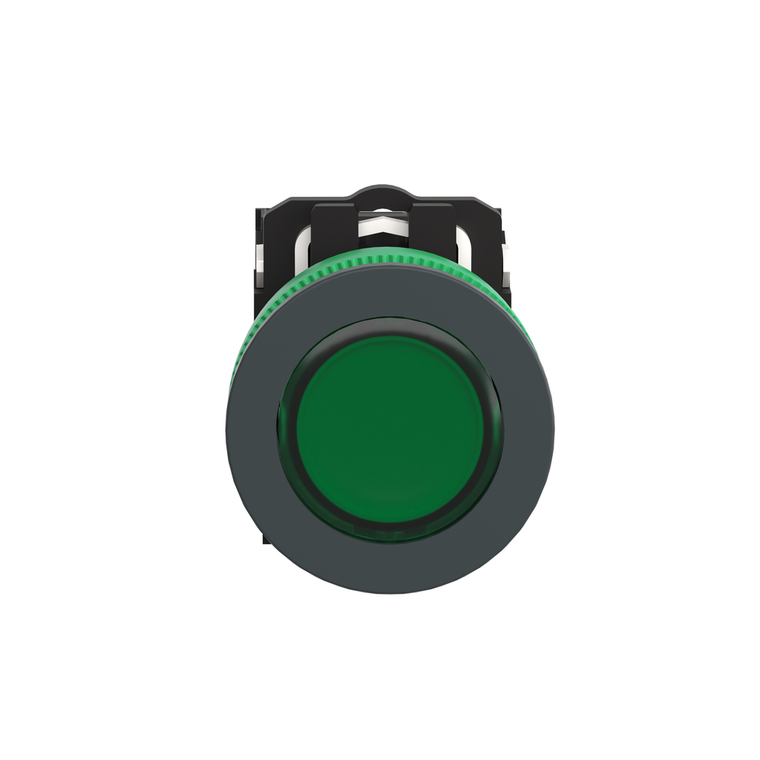

Schneider Electric XB5FW33B5 Flush Green Cap Ipb Led 24 1No 1Nc Screw

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5FW33B5 Flush Green Cap Ipb Led 24 1No 1Nc Screw

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FW33B5

UPC:

3606481361035

MPN:

Condition:

New

Contacts Material:

silver alloy (Ag/Ni)

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Device Short Name:

XB5F

Device Presentation:

complete product

Type Of Operator:

spring return

Product Certifications:

UL Listed || CSA

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Rohs Exemption Information:

Yes

Fixing Collar Material:

plastic

Resistance To Fast Transients:

2 kV IEC 61000-4-4

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Environmental Disclosure:

ENVPEP1710010EN

Operator Additional Information:

with plain lens

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Circularity Profile:

ENVEOLI1710010EN

Cap/Operator Or Lens Colour:

green

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Operator Profile:

green flush, unmarked

Head Type:

built-in-flush

Standards:

IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1 || ISO 22196:2011 || ISO 21702

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Signalling Type:

steady

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Ambient Air Temperature For Operation:

-40-70 °C

Bezel Material:

dark grey plastic

Sale Per Indivisible Quantity:

1

Contact Operation:

slow-break

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ik Degree Of Protection:

IK03 IEC 50102

Surge Withstand:

1 kV IEC 61000-4-5

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Depth:

55 mm

Shape Of Signaling Unit Head:

round

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Contacts Type And Composition:

1 NO + 1 NC

Current Consumption:

18 mA

Contacts Usage:

standard contacts

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Product Or Component Type:

illuminated push-button

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Height:

42 mm

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Positive Opening:

with IEC 60947-5-1 appendix K

Overvoltage Category:

class II IEC 60536

Service Life:

100000 h at rated voltage and 25 °C

Mechanical Durability:

10000000 cycles

Electromagnetic Emission:

class B IEC 55011

Ambient Air Temperature For Storage:

-40-70 °C

Width:

36.6 mm

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

China Rohs Regulation:

X

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Light Source:

universal LED

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Mounting Diameter:

30.5 mm

Mercury Free:

Yes

Important Message:

Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block

Sustainable Offer Status:

Green Premium product

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Range Of Product:

Harmony XB5

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Protective Treatment:

TH

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Bulb Base:

integral LED
