Schneider Electric

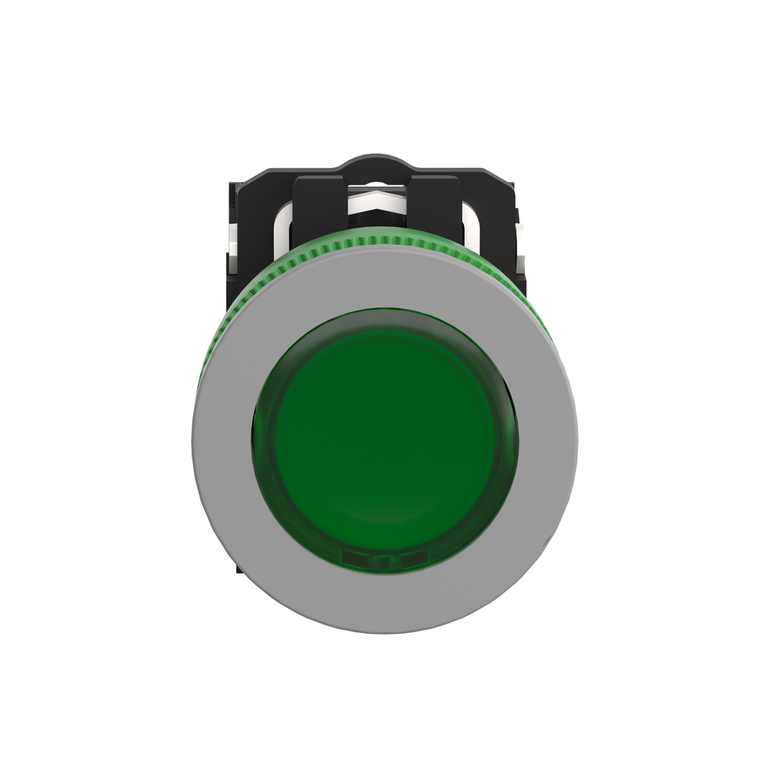

Schneider Electric XB5FW33G5C0 Flush Green Cap Ipb Led 120 1No 1Nc Scr

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5FW33G5C0 Flush Green Cap Ipb Led 120 1No 1Nc Scr

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FW33G5C0

UPC:

3606489761486

MPN:

Condition:

New

Contact Operation:

slow-break

Bulb Base:

integral LED

Fixing Collar Material:

plastic

Width:

36.6 mm

Sale Per Indivisible Quantity:

1

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Product Certifications:

UL Listed || CSA

Standards:

IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Light Source:

universal LED

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Head Type:

built-in-flush

Device Presentation:

complete product

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

China Rohs Regulation:

X

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ambient Air Temperature For Operation:

-40-70 °C

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Current Consumption:

14 mA

Mercury Free:

Yes

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Ambient Air Temperature For Storage:

-40-70 °C

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Supply Voltage Limits:

100-132 V AC

Contacts Material:

silver alloy (Ag/Ni)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Rohs Exemption Information:

Yes

Cap/Operator Or Lens Colour:

green

Overvoltage Category:

class II IEC 60536

Depth:

55 mm

Mounting Diameter:

30.5 mm

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Operator Profile:

green flush, unmarked

Range Of Product:

Harmony XB5

Bezel Material:

plastic colour plated grey

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ik Degree Of Protection:

IK03 IEC 50102

Shape Of Signaling Unit Head:

round

Surge Withstand:

1 kV IEC 61000-4-5

Service Life:

100000 h at rated voltage and 25 °C

Contacts Type And Composition:

1 NO + 1 NC

Product Or Component Type:

illuminated push-button

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Positive Opening:

with IEC 60947-5-1 appendix K

Signalling Type:

steady

Protective Treatment:

TH

Electromagnetic Emission:

class B IEC 55011

Contacts Usage:

standard contacts

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Type Of Operator:

spring return

Mechanical Durability:

10000000 cycles

Operator Additional Information:

with plain lens

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Height:

42 mm

Device Short Name:

XB5F

Datasheet:

View
