Schneider Electric XB5FW35G5 Flush Or. Cap Ipb Led 120 1No 1Nc Screw

Schneider Electric XB5FW35G5 Flush Or. Cap Ipb Led 120 1No 1Nc Screw

Schneider Electric
SKU:
XB5FW35G5
|
UPC:
3606481361103
$119.30
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

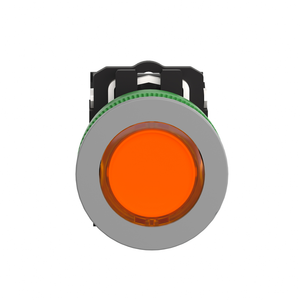

This flush mounted illuminated pushbutton is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 110 V to 120 V AC. Customized marking option through web customization tool in Schneider Electric website is available. Improved ergonomics and aesthetics due to flush mount design. It comes with antimicrobial characteristics. It has a plain lens and the source of light is a universal LED. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return. The shape of the head is round and orange. The bezel and the fixing collar is plastic. The weight of this pushbutton is 52 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted plastic circular blanking plug, metal ring, protective washer, and plastic flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
Additional Information
Ambient Air Temperature For Operation:
-40-70 °C
Depth:
55 mm
Light Source:
universal LED
Surge Withstand:
1 kV IEC 61000-4-5
Mechanical Durability:
10000000 cycles
Product Certifications:
UL Listed || CSA
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Height:
42 mm
Range Of Product:
Harmony XB5
Standards:
IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1 || ISO 22196:2011 || ISO 21702
Device Short Name:
XB5F
Supply Voltage Limits:
100-132 V AC
Current Consumption:
14 mA
Contacts Material:
silver alloy (Ag/Ni)
Overvoltage Category:
class II IEC 60536
Positive Opening:
with IEC 60947-5-1 appendix K
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Width:
36.6 mm
Fixing Collar Material:
plastic
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Head Type:
built-in-flush
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Contacts Type And Composition:
1 NO + 1 NC
Operating Force:
3.5 N NC changing electrical state || 3.8 N
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Contacts Usage:
standard contacts
Contact Operation:
slow-break
Device Presentation:
complete product
Operator Profile:
orange flush, unmarked
Bulb Base:
integral LED
Mounting Diameter:
30.5 mm
Sustainable Offer Status:
Green Premium product
Protective Treatment:
TH
Product Or Component Type:
illuminated push-button
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Cap/Operator Or Lens Colour:
orange
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Signalling Type:
steady
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Shape Of Signaling Unit Head:
round
Service Life:
100000 h at rated voltage and 25 °C
Ik Degree Of Protection:
IK03 IEC 50102
Bezel Material:
dark grey plastic
Mercury Free:
Yes
China Rohs Regulation:
X
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
[Us] Rated Supply Voltage:
110...120 V AC 50/60 Hz
Rohs Exemption Information:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Type Of Operator:
spring return
Important Message:
Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Terminals Description Iso N°1:
(21-22)NC || (13-14)NO
Circularity Profile:
ENVEOLI1710010EN
Operator Additional Information:
with plain lens
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Environmental Disclosure:
ENVPEP1710010EN
Electromagnetic Emission:
class B IEC 55011
Ambient Air Temperature For Storage:
-40-70 °C
Sale Per Indivisible Quantity:
1
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Datasheet:
View
