Schneider Electric XB5FW35G5C0 Flush Or. Cap Ipb Led 120 1No 1Nc Screw

Schneider Electric XB5FW35G5C0 Flush Or. Cap Ipb Led 120 1No 1Nc Screw

Schneider Electric
SKU:
XB5FW35G5C0
|
UPC:
3606489761608
$59.22
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

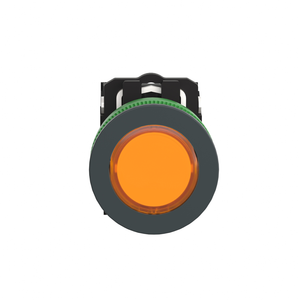

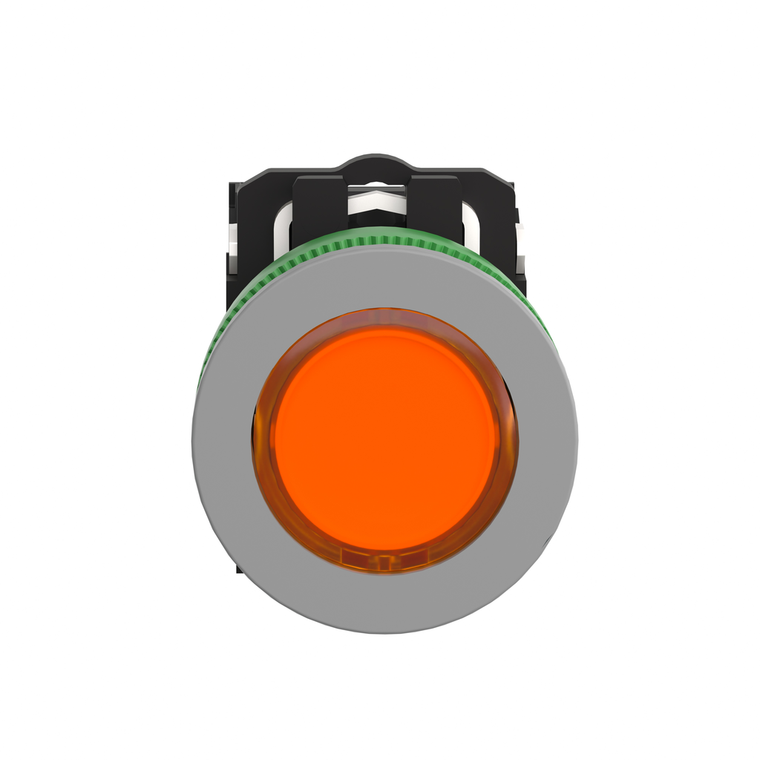

This flush mounted illuminated pushbutton is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 120 V AC. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. It has a plain lens and the source of light is a universal LED. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return. The shape of the head is round and orange. The bezel is plastic color plated white and the fixing collar is plastic. The weight of this pushbutton is 52 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted plastic circular blanking plug, metal ring, protective washer, and plastic flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
Additional Information
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ip Degree Of Protection:
IP66 IEC 60529 || IP67
Light Source:
universal LED
Protective Treatment:
TH
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Range Of Product:
Harmony XB5
China Rohs Regulation:
X
Mounting Diameter:
30.5 mm
Surge Withstand:
1 kV IEC 61000-4-5
Contacts Material:
silver alloy (Ag/Ni)
Depth:
55 mm
Signalling Type:
steady
Electromagnetic Emission:
class B IEC 55011
Mercury Free:
Yes
Bulb Base:
integral LED
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Head Type:
built-in-flush
Type Of Operator:
spring return
Positive Opening:
with IEC 60947-5-1 appendix K
Supply Voltage Limits:
100-132 V AC
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Width:
36.6 mm
Overvoltage Category:
class II IEC 60536
Operator Additional Information:
with plain lens
Service Life:
100000 h at rated voltage and 25 °C
Device Short Name:
XB5F
Contacts Usage:
standard contacts
Mechanical Durability:
10000000 cycles
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Fixing Collar Material:
plastic
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Standards:
IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Certifications:
UL Listed || CSA
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Ambient Air Temperature For Operation:
-40-70 °C
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
[Us] Rated Supply Voltage:
110...120 V AC 50/60 Hz
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Bezel Material:
plastic colour plated grey
Ik Degree Of Protection:
IK03 IEC 50102
Shape Of Signaling Unit Head:
round
Operator Profile:
orange flush, unmarked
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Sale Per Indivisible Quantity:
1
Ambient Air Temperature For Storage:
-40-70 °C
Product Or Component Type:
illuminated push-button
Important Message:
A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Cap/Operator Or Lens Colour:
orange
Operating Force:
3.5 N NC changing electrical state || 3.8 N
Current Consumption:
14 mA
Terminals Description Iso N°1:
(21-22)NC || (13-14)NO
Contacts Type And Composition:
1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Contact Operation:
slow-break
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Device Presentation:
complete product
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Height:
42 mm
