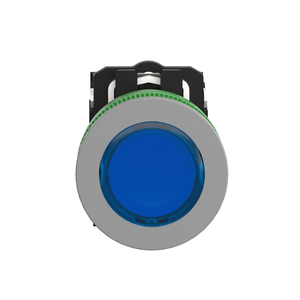

Schneider Electric XB5FW36B5 Flush Blue Cap Ipb Led 24 1No 1Nc Screw

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5FW36B5 Flush Blue Cap Ipb Led 24 1No 1Nc Screw

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FW36B5

UPC:

3606481361127

MPN:

Condition:

New

Ambient Air Temperature For Storage:

-40-70 °C

Contacts Type And Composition:

1 NO + 1 NC

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Contact Operation:

slow-break

Fixing Collar Material:

plastic

Height:

42 mm

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sale Per Indivisible Quantity:

1

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Shape Of Signaling Unit Head:

round

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Depth:

55 mm

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Important Message:

Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block

Overvoltage Category:

class II IEC 60536

Device Presentation:

complete product

Light Source:

universal LED

Mercury Free:

Yes

Contacts Material:

silver alloy (Ag/Ni)

Product Certifications:

UL Listed || CSA

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Width:

36.6 mm

Current Consumption:

18 mA

Signalling Type:

steady

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Rohs Exemption Information:

Yes

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Operator Profile:

blue flush, unmarked

Range Of Product:

Harmony XB5

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

China Rohs Regulation:

X

Mounting Diameter:

30.5 mm

Operator Additional Information:

with plain lens

Product Or Component Type:

illuminated push-button

Sustainable Offer Status:

Green Premium product

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Environmental Disclosure:

ENVPEP1710010EN

Device Short Name:

XB5F

Contacts Usage:

standard contacts

Service Life:

100000 h at rated voltage and 25 °C

Ambient Air Temperature For Operation:

-40-70 °C

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Mechanical Durability:

10000000 cycles

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Bulb Base:

integral LED

Surge Withstand:

1 kV IEC 61000-4-5

Bezel Material:

dark grey plastic

Type Of Operator:

spring return

Protective Treatment:

TH

Cap/Operator Or Lens Colour:

blue

Standards:

IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1 || ISO 22196:2011 || ISO 21702

Positive Opening:

with IEC 60947-5-1 appendix K

Electromagnetic Emission:

class B IEC 55011

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Head Type:

built-in-flush

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Circularity Profile:

ENVEOLI1710010EN

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Ik Degree Of Protection:

IK03 IEC 50102
