Schneider Electric XB5FW36G5C0 Flush Blue Cap Ipb Led 120 1No 1Nc Screw

(No reviews yet) Write a Review
SKU:
XB5FW36G5C0
UPC:
3606489761660
Condition:
New
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Rohs Exemption Information:
Yes
Depth:
55 mm
Mounting Diameter:
30.5 mm
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Range Of Product:
Harmony XB5
Standards:
IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
Height:
42 mm
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Overvoltage Category:
class II IEC 60536
Contacts Usage:
standard contacts
Important Message:
A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Contacts Material:
silver alloy (Ag/Ni)
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Mercury Free:
Yes
Shape Of Signaling Unit Head:
round
Type Of Operator:
spring return
Surge Withstand:
1 kV IEC 61000-4-5
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Terminals Description Iso N°1:
(21-22)NC || (13-14)NO
China Rohs Regulation:
X
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Operator Additional Information:
with plain lens
Operator Profile:
blue flush, unmarked
Service Life:
100000 h at rated voltage and 25 °C
Bulb Base:
integral LED
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Head Type:
built-in-flush
Operating Force:
3.5 N NC changing electrical state || 3.8 N
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Ambient Air Temperature For Storage:
-40-70 °C
Product Or Component Type:
illuminated push-button
Ambient Air Temperature For Operation:
-40-70 °C
Current Consumption:
14 mA
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Contact Operation:
slow-break
Sale Per Indivisible Quantity:
1
Fixing Collar Material:
plastic
Protective Treatment:
TH
Ik Degree Of Protection:
IK03 IEC 50102
[Us] Rated Supply Voltage:
110...120 V AC 50/60 Hz
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Positive Opening:
with IEC 60947-5-1 appendix K
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Cap/Operator Or Lens Colour:
blue
Ip Degree Of Protection:
IP66 IEC 60529 || IP67
Signalling Type:
steady
Mechanical Durability:
10000000 cycles
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications:
UL Listed || CSA
Bezel Material:
plastic colour plated grey
Device Short Name:
XB5F
Width:
36.6 mm
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Presentation:
complete product
Electromagnetic Emission:
class B IEC 55011
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Contacts Type And Composition:
1 NO + 1 NC
Supply Voltage Limits:
100-132 V AC
Light Source:
universal LED
Datasheet:
View
$59.22

Description

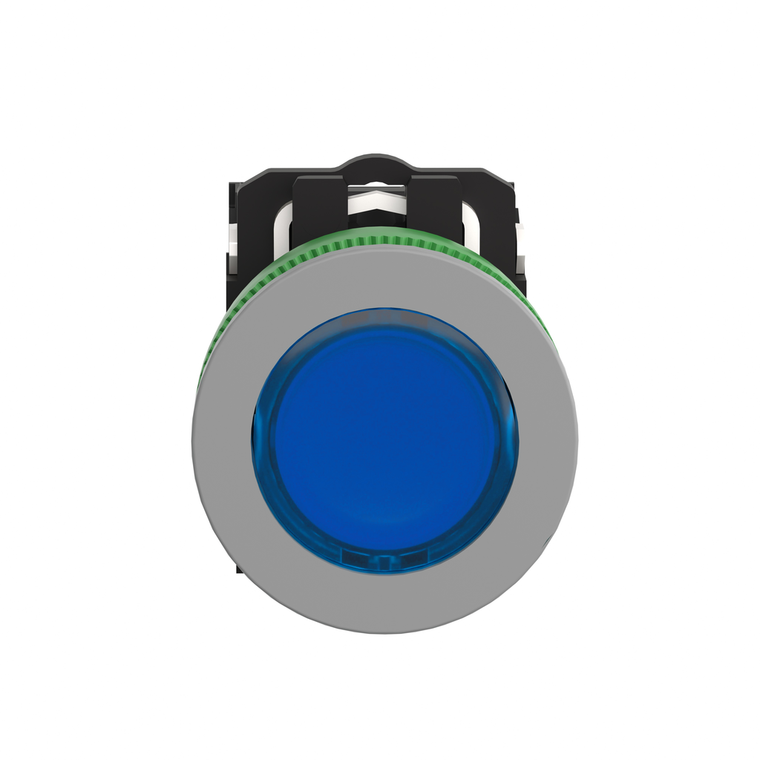

This flush mounted illuminated pushbutton is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 120 V AC. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. It has a plain lens and the source of light is a universal LED. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return. The shape of the head is round and blue. The bezel is plastic color plated grey and the fixing collar is plastic. The weight of this pushbutton is 52 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted plastic circular blanking plug, metal ring, protective washer, and plastic flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
