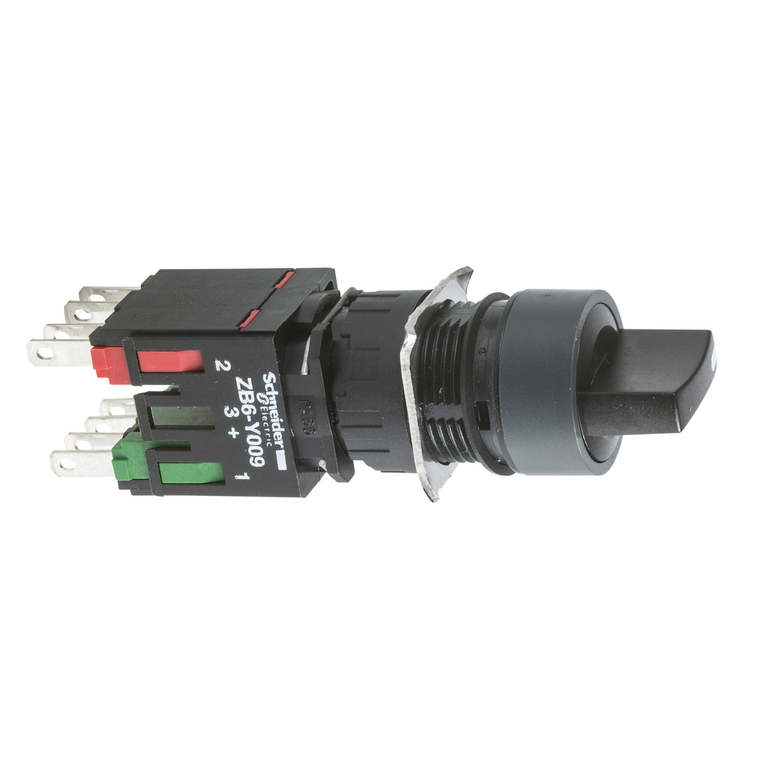

Schneider Electric XB6AD225B Black Selec To R Switch Diam 16 Handle 2
SKU:
XB6AD225B
UPC:
3389110764581
MPN:
Condition:
New
Mechanical Durability:
500000 cycles
Positive Opening:
with IEC 60947-5-1 appendix K
Terminals Description Iso N°1:
(13-14)NO || (21-22)NC
Product Or Component Type:
complete selector switch
Nema Degree Of Protection:
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Type Of Operator:
stay put
Environmental Disclosure:
ENVPEP1710010EN
Depth:
68 mm
Net Weight:
0.024 kg
Device Short Name:
XB6
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Standards:
IEC 60947-5-5 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 852 || UL 508 || JIS C8201-1
Operating Position:
any position
Electrical Reliability:
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Contact Operation:
slow-break
Width:
18 mm
Mercury Free:
Yes
Ip Degree Of Protection:
IP65 IEC 60529
Protective Treatment:
TC
Height:
18 mm
Vibration Resistance:
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Sale Per Indivisible Quantity:
1
Shape Of Signaling Unit Head:
square
Range Of Product:
Harmony XB6
Warranty:
18 months
Ambient Air Temperature For Operation:
-25-70 °C
Electrical Durability:
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Connections - Terminals:
Faston connectors 2.8 x 0.5 mm
Bezel Material:
plastic
Operator Position Information:
2 positions 60°
Contacts Material:
silver alloy (Ag/Ni)
Short-Circuit Protection:
6 A cartridge fuse gG
China Rohs Regulation:
X
Rohs Exemption Information:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circularity Profile:
ENVEOLI1710010EN
Toxic Heavy Metal Free:
Yes
Mounting Diameter:
16 mm
Operator Profile:
black standard handle
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Ambient Air Temperature For Storage:
-40-70 °C
Reach Free Of Svhc:
Yes
Electrical Shock Protection Class:
class II IEC 61140
Contacts Type And Composition:
1 NO
Sustainable Offer Status:
Green Premium product
[Ie] Rated Operational Current:
3 A 120 V, AC-15, B300 IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Product Certifications:
CCC || CSA || GOST || UL
Reach Regulation:
Free of Substances of Very High Concern above the threshold
This Harmony ZB6AD22 is a black selector switch head, 2-position stay put. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
This Harmony ZB6AD28 is a black selector switch head, 2-position stay put. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
