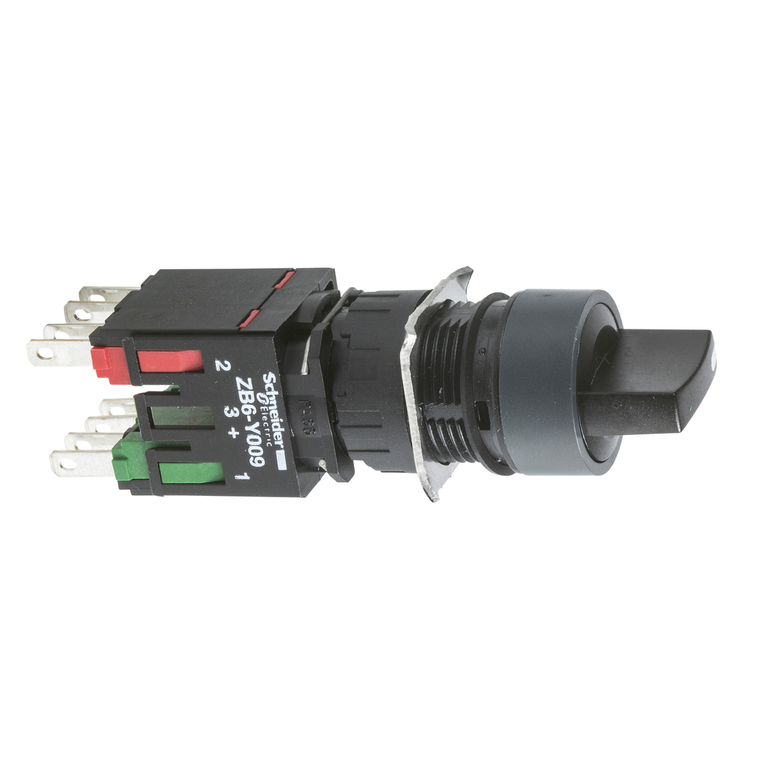

Schneider Electric XB6AD235B Black Selec To R Switch Diam 16 Handle 3
SKU:
XB6AD235B
UPC:
3.38911E+12
MPN:
Condition:
New
Terminals Description Iso N°1:
(21-22)NC || (13-14)NO
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Depth:
68 mm
Sustainable Offer Status:
Green Premium product
Operator Profile:
black standard handle
Toxic Heavy Metal Free:
Yes
Environmental Disclosure:
ENVPEP1710010EN
Type Of Operator:
stay put
Range Of Product:
Harmony XB6
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Operator Position Information:
3 positions 60°
Protective Treatment:
TC
Standards:
UL 508 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-5-5 || JIS C 852 || JIS C8201-1
Positive Opening:
with IEC 60947-5-1 appendix K
Product Certifications:
GOST || UL || CCC || CSA
Short-Circuit Protection:
6 A cartridge fuse gG
Circularity Profile:
ENVEOLI1710010EN
Electrical Reliability:
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Electrical Shock Protection Class:
class II IEC 61140
Mounting Diameter:
16 mm
Width:
18 mm
Mechanical Durability:
500000 cycles
Connections - Terminals:
Faston connectors 2.8 x 0.5 mm
Device Short Name:
XB6
Electrical Durability:
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Contact Operation:
slow-break
Reach Free Of Svhc:
Yes
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sale Per Indivisible Quantity:
1
Ambient Air Temperature For Operation:
-25-70 °C
[Ie] Rated Operational Current:
3 A 120 V, AC-15, B300 IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Net Weight:
0.024 kg
Nema Degree Of Protection:
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Contacts Type And Composition:
2 NO
Shape Of Signaling Unit Head:
square
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 60947-1
Warranty:
18 months
Contacts Material:
silver alloy (Ag/Ni)
Product Or Component Type:
complete selector switch
Height:
18 mm
Operating Position:
any position
Bezel Material:
plastic
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Ambient Air Temperature For Storage:
-40-70 °C
Ip Degree Of Protection:
IP65 IEC 60529
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Vibration Resistance:
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
