Schneider Electric XB6AV3BB Round Pilot Light Diam 16 Ip 65 Green In

Schneider Electric XB6AV3BB Round Pilot Light Diam 16 Ip 65 Green In

Schneider Electric
SKU:
XB6AV3BB
|
UPC:
3389110764468
$27.30
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

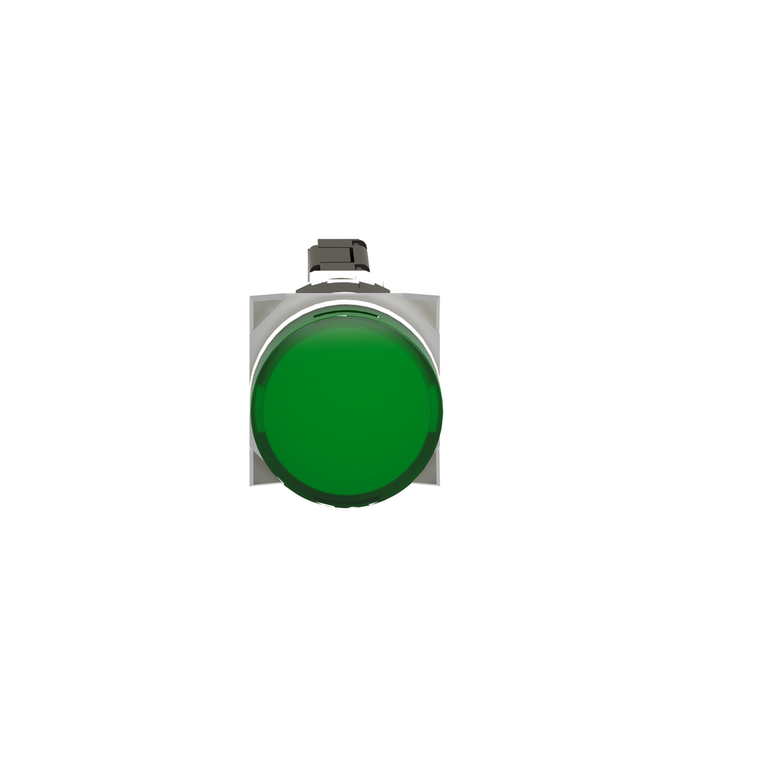

This Harmony XB6 green, complete pilot light is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape and is supplied with an integral LED and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. This range comes with good color purity and offers the advantage of LED brightness. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.
Additional Information
Electromagnetic Emission:
class B EN 55011
Sale Per Indivisible Quantity:
1
Ambient Air Temperature For Storage:
-40-70 °C
Shape Of Signaling Unit Head:
round
Vibration Resistance:
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Rohs Exemption Information:
Yes
China Rohs Regulation:
X
Ambient Air Temperature For Operation:
-25-70 °C
Connections - Terminals:
Faston connectors 2.8 x 0.5 mm
Current Consumption:
15 mA
Warranty:
18 months
Environmental Disclosure:
ENVPEP1710010EN
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Ip Degree Of Protection:
IP65 IEC 60529
Standards:
EN/IEC 60947-5-5 || JIS C 852 || EN/IEC 60947-1 || UL 508 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-1 || JIS C8201-1
Device Short Name:
XB6
Circularity Profile:
ENVEOLI1710010EN
[Uimp] Rated Impulse Withstand Voltage:
4 kV EN/IEC 60947-1
[Ui] Rated Insulation Voltage:
250 V 2)EN/IEC 60947-1
Cap/Operator Or Lens Colour:
green
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Terminals Description Iso N°1:
(+ -)PL
Mounting Diameter:
16 mm
Protective Treatment:
TC
Range Of Product:
Harmony XB6
Bulb Base:
integral LED
Bezel Material:
plastic
Product Certifications:
UL || CCC || GOST || CSA
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Surge Withstand:
1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
Width:
18 mm
Net Weight:
0.015 kg
[Us] Rated Supply Voltage:
12...24 V AC/DC
Operating Position:
any position
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Light Source:
LED
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Signalling Type:
steady
Supply Voltage Limits:
6-30 V AC/DC
Height:
18 mm
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Electrical Shock Protection Class:
class II IEC 61140
Depth:
57 mm
Light Block Supply:
direct
Nema Degree Of Protection:
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Or Component Type:
complete pilot light
