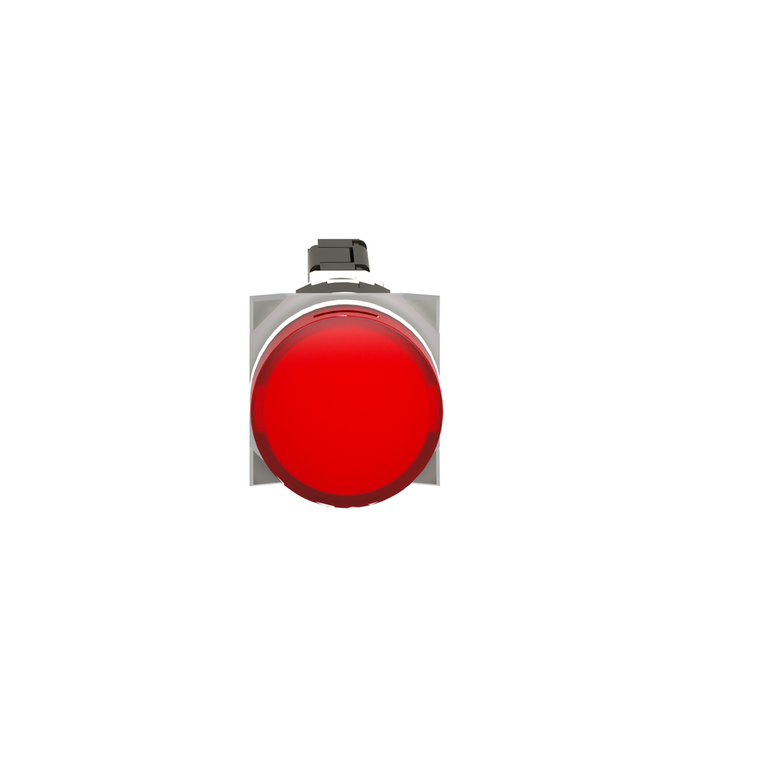

Schneider Electric XB6AV4GB Rnd Red Led 120Vac

Schneider Electric XB6AV4GB Rnd Red Led 120Vac

Schneider Electric
SKU:
XB6AV4GB
|
UPC:
785901433248
$27.30
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This pilot light, designed to last without maintenance for a bright indicator of process and machine operations, is easily installed into a standard 16mm diameter cut-outs and connected with simple screw-clamp connections It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination and transformer It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 13 and 4X)
Additional Information
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Ui] Rated Insulation Voltage:
250 V 2)EN/IEC 60947-1
Cap/Operator Or Lens Colour:
red
Vibration Resistance:
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Surge Withstand:
1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
Connections - Terminals:
Faston connectors 2.8 x 0.5 mm
Ip Degree Of Protection:
IP65 IEC 60529
Depth:
57 mm
Circularity Profile:
ENVEOLI1710010EN
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Storage:
-40-70 °C
[Uimp] Rated Impulse Withstand Voltage:
4 kV EN/IEC 60947-1
Mercury Free:
Yes
Product Or Component Type:
complete pilot light
Ambient Air Temperature For Operation:
-25-70 °C
Light Block Supply:
direct
Sale Per Indivisible Quantity:
1
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Signalling Type:
steady
[Us] Rated Supply Voltage:
48...120 V AC
Height:
18 mm
Bezel Material:
plastic
Supply Voltage Limits:
6-30 V AC/DC
Bulb Base:
integral LED
Width:
18 mm
Electrical Shock Protection Class:
class II IEC 61140
Standards:
EN/IEC 60947-1 || JIS C 852 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
Rohs Exemption Information:
Yes
Device Short Name:
XB6
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Shape Of Signaling Unit Head:
round
Light Source:
LED
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Nema Degree Of Protection:
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Range Of Product:
Harmony XB6
Environmental Disclosure:
ENVPEP1710010EN
Warranty:
18 months
Operating Position:
any position
Product Certifications:
CCC || UL || GOST || CSA
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Electromagnetic Emission:
class B EN 55011
Mounting Diameter:
16 mm
Current Consumption:
15 mA
Terminals Description Iso N°1:
(X1-X2)PL
Protective Treatment:
TC
Net Weight:
0.015 kg
China Rohs Regulation:
X
