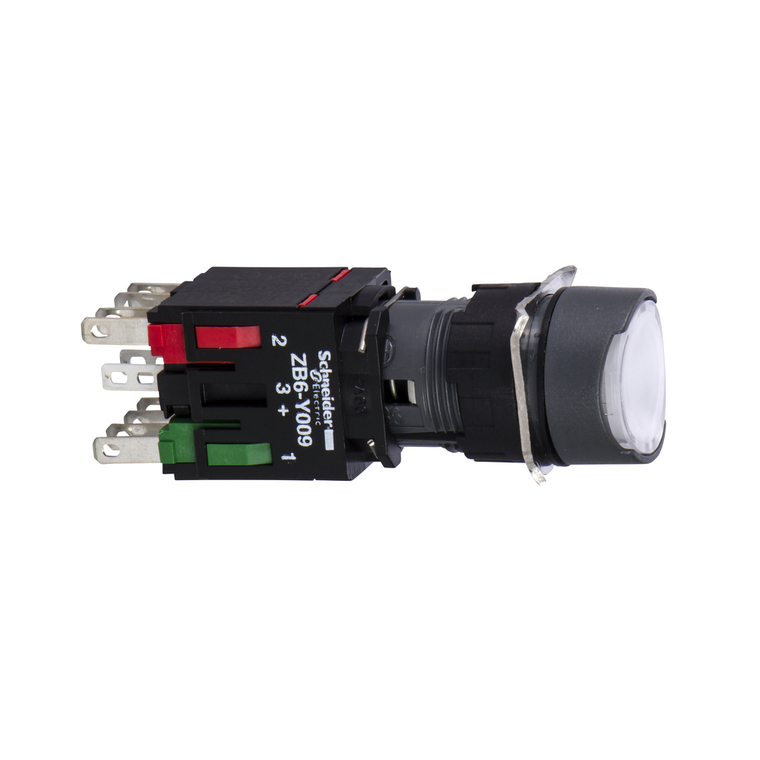

Schneider Electric XB6AW1B5B White Illuminated Pushbut To N Diam 16 F
SKU:
XB6AW1B5B
UPC:
3389110763737
MPN:
Condition:
New
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Material:
silver alloy (Ag/Ni)
Shape Of Signaling Unit Head:
round
Cad Overall Depth:
57 mm
Device Short Name:
XB6
Ambient Air Temperature For Operation:
-25-70 °C
Bezel Material:
plastic
Electrical Durability:
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Operating Position:
any position
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Net Weight:
0.025 kg
[Ie] Rated Operational Current:
3 A 120 V, AC-15, B300 IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
China Rohs Regulation:
X
Range Of Product:
Harmony XB6
Operating Force:
3.5 N NO changing electrical state || 4.5 N NC changing electrical state
Electromagnetic Emission:
class B IEC 55011
Sustainable Offer Status:
Green Premium product
Connections - Terminals:
Faston connectors 2.8 x 0.5 mm
Mercury Free:
Yes
Supply Voltage Limits:
6-30 V AC/DC
Operating Travel:
1 mm NO changing electrical state) || 2 mm NC changing electrical state) || 3.5 mm total travel)
Short-Circuit Protection:
6 A cartridge fuse gG
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Contact Operation:
slow-break
Product Or Component Type:
complete illuminated push-button
Nema Degree Of Protection:
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 60947-1
Operator Profile:
white flush, unmarked
Bulb Base:
integral LED
Electrical Reliability:
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Standards:
CSA C22.2 No 14 || IEC 60947-5-5 || JIS C 4520 || IEC 60947-1 || JIS C 852 || IEC 60947-5-1
Rohs Exemption Information:
Yes
Positive Opening:
with IEC 60947-5-1 appendix K
Electrical Shock Protection Class:
class II IEC 61140
Cad Overall Width:
18 mm
Current Consumption:
15 mA
Contacts Type And Composition:
1 NO + 1 NC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty:
18 months
Circularity Profile:
ENVEOLI1710010EN
Protective Treatment:
TC
Type Of Operator:
spring return
Environmental Disclosure:
ENVPEP1710010EN
Terminals Description Iso N°1:
(13-14)NO || (21-22)NC
Ip Degree Of Protection:
IP65 IEC 60529
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Sale Per Indivisible Quantity:
1
Light Source:
LED
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Product Certifications:
GOST || UL || CSA || CCC
Vibration Resistance:
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage:
-40-70 °C
Signalling Type:
steady
Surge Withstand:
1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
This Harmony XB6 illuminated push button is part of the range diameter 16mm plastic, Harmony XB6 monolithic. It has a a rectangular head shape, and is supplied with a white flush push, unmarked. It...
