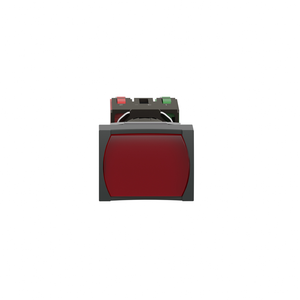

Schneider Electric XB6AW4B5B Red Illuminated Pushbut To N Diam 16 Flu

(No reviews yet) Write a Review
SKU:
XB6AW4B5B
UPC:
3389110763850
Condition:
New
Terminals Description Iso N°1:
(13-14)NO || (21-22)NC
Product Certifications:
CSA || GOST || CCC || UL
[Us] Rated Supply Voltage:
12...24 V AC/DC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Bezel Material:
plastic
Electrical Reliability:
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Product Or Component Type:
complete illuminated push-button
Cad Overall Depth:
57 mm
Operating Position:
any position
Short-Circuit Protection:
6 A cartridge fuse gG
Cad Overall Height:
18 mm
Standards:
JIS C 852 || IEC 60947-5-5 || IEC 60947-5-1 || JIS C 4520 || IEC 60947-1 || CSA C22.2 No 14
Nema Degree Of Protection:
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Electrical Shock Protection Class:
class II IEC 61140
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 60947-1
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Contacts Material:
silver alloy (Ag/Ni)
Ambient Air Temperature For Operation:
-25-70 °C
Mounting Diameter:
16 mm
Circularity Profile:
ENVEOLI1710010EN
Cad Overall Width:
18 mm
China Rohs Regulation:
X
Connections - Terminals:
Faston connectors 2.8 x 0.5 mm
Sale Per Indivisible Quantity:
1
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Rohs Exemption Information:
Yes
Operator Profile:
red flush, unmarked
Contact Operation:
slow-break
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Operating Travel:
1 mm NO changing electrical state) || 2 mm NC changing electrical state) || 3.5 mm total travel)
Light Source:
LED
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Operating Force:
3.5 N NO changing electrical state || 4.5 N NC changing electrical state
Environmental Disclosure:
ENVPEP1710010EN
Signalling Type:
steady
Range Of Product:
Harmony XB6
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Bulb Base:
integral LED
Device Short Name:
XB6
Supply Voltage Limits:
6-30 V AC/DC
Protective Treatment:
TC
Vibration Resistance:
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Current Consumption:
15 mA
Mercury Free:
Yes
Contacts Type And Composition:
1 NO + 1 NC
Warranty:
18 months
Net Weight:
0.025 kg
Type Of Operator:
spring return
Electrical Durability:
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Positive Opening:
with IEC 60947-5-1 appendix K
Ip Degree Of Protection:
IP65 IEC 60529
Electromagnetic Emission:
class B IEC 55011
Surge Withstand:
1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ambient Air Temperature For Storage:
-40-70 °C
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
[Ie] Rated Operational Current:
3 A 120 V, AC-15, B300 IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Shape Of Signaling Unit Head:
round
Catalog:
View
Datasheet:
View
$52.40

Description

This Harmony XB6 red, complete illuminated push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape, with a flush spring return push and is supplied with an integral LED. It features 1 NO + 1 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. This range comes with good color purity and offers the advantage of LED brightness. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.
