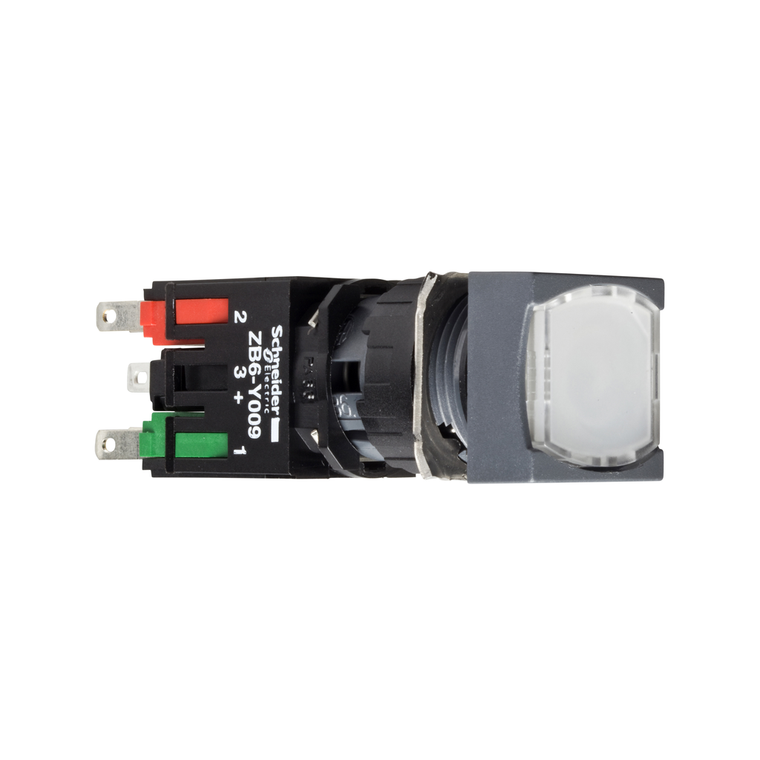

Schneider Electric XB6CF1B5B White Illuminated Pushbut To N Diam 16 F

Schneider Electric XB6CF1B5B White Illuminated Pushbut To N Diam 16 F

Schneider Electric
SKU:
XB6CF1B5B
|
UPC:
3389110763904
$52.40
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
WHITE ILLUMINATED PUSHBUT TO N DIAM 16 F
Additional Information
Height:
18 mm
China Rohs Regulation:
X
Short-Circuit Protection:
6 A cartridge fuse gG
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
[Ui] Rated Insulation Voltage:
250 V 3)EN/IEC 60947-1
Rohs Exemption Information:
Yes
Type Of Operator:
latching
Contact Operation:
slow-break
Device Short Name:
XB6
Nema Degree Of Protection:
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Light Source:
LED
Environmental Disclosure:
ENVPEP1710010EN
Depth:
57 mm
Connections - Terminals:
Faston connectors 2.8 x 0.5 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Contacts Material:
silver alloy (Ag/Ni)
Sale Per Indivisible Quantity:
1
Current Consumption:
15 mA
Bulb Base:
integral LED
Operator Profile:
white flush, unmarked
Operating Travel:
1 mm NO changing electrical state) || 2 mm NC changing electrical state) || 3.5 mm total travel)
Product Or Component Type:
complete illuminated push-button
Electrical Reliability:
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Electromagnetic Emission:
class B IEC 55011
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
[Uimp] Rated Impulse Withstand Voltage:
4 kV EN/IEC 60947-1
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Bezel Material:
plastic
Product Certifications:
GOST || CCC || CSA || UL
Sustainable Offer Status:
Green Premium product
Operating Position:
any position
Surge Withstand:
1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
Net Weight:
0.025 kg
Terminals Description Iso N°1:
(13-14)NO || (21-22)NC
Positive Opening:
with EN/IEC 60947-5-1 appendix K
[Ie] Rated Operational Current:
3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Mercury Free:
Yes
Electrical Shock Protection Class:
class II IEC 61140
Ambient Air Temperature For Operation:
-25-70 °C
Ip Degree Of Protection:
IP65 IEC 60529
Electrical Durability:
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Signalling Type:
steady
Protective Treatment:
TC
Contacts Type And Composition:
1 NO + 1 NC
Vibration Resistance:
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Supply Voltage Limits:
6-30 V AC/DC
Warranty:
18 months
Ambient Air Temperature For Storage:
-40-70 °C
Standards:
EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || JIS C 4520 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C 852
Operating Force:
3.5 N NO changing electrical state || 4.5 N NC changing electrical state
Circularity Profile:
ENVEOLI1710010EN
Width:
18 mm
Mounting Diameter:
16 mm
Range Of Product:
Harmony XB6
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Shape Of Signaling Unit Head:
square
[Us] Rated Supply Voltage:
12...24 V AC/DC
