Schneider Electric XB6CV3BB Square Pilot Light Diam 16 Ip 65 Green I
Schneider Electric
$27.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

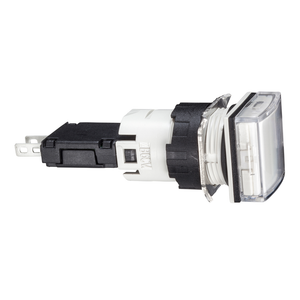

Schneider Electric XB6CV3BB Square Pilot Light Diam 16 Ip 65 Green I
This Harmony XB6 green, complete pilot light is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a square head shape and is supplied with an integral LED and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. This range comes with good color purity and offers the advantage of LED brightness. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.
- Width:
- 18 mm
- Product Or Component Type:
- complete pilot light
- Light Block Supply:
- direct
- Current Consumption:
- 15 mA
- Nema Degree Of Protection:
- NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
- Terminals Description Iso N°1:
- (+ -)PL
- Rohs Exemption Information:
- Yes
- Resistance To Electromagnetic Fields:
- 10 V/m IEC 61000-4-3
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 0.015 kg
- China Rohs Regulation:
- X
- Height:
- 18 mm
- Vibration Resistance:
- +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
- Light Source:
- LED
- Circularity Profile:
- ENVEOLI1710010EN
- Ip Degree Of Protection:
- IP65 IEC 60529
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- Supply Voltage Limits:
- 6-30 V AC/DC
- Mounting Diameter:
- 16 mm
- Standards:
- EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || UL 508 || JIS C 852 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-1
- Range Of Product:
- Harmony XB6
- Sale Per Indivisible Quantity:
- 1
- Signalling Type:
- steady
- Shape Of Signaling Unit Head:
- square
- Electromagnetic Emission:
- class B EN 55011
- [Ui] Rated Insulation Voltage:
- 250 V 2)EN/IEC 60947-1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operating Position:
- any position
- Device Short Name:
- XB6
- Bulb Base:
- integral LED
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Electrical Shock Protection Class:
- class II IEC 61140
- [Us] Rated Supply Voltage:
- 12...24 V AC/DC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Depth:
- 57 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV EN/IEC 60947-1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ambient Air Temperature For Operation:
- -25-70 °C
- Product Certifications:
- CCC || UL || GOST || CSA
- Cap/Operator Or Lens Colour:
- green
- Connections - Terminals:
- Faston connectors 2.8 x 0.5 mm
- Bezel Material:
- plastic
- Protective Treatment:
- TC
- Surge Withstand:
- 1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
- Environmental Disclosure:
- ENVPEP1710010EN
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
