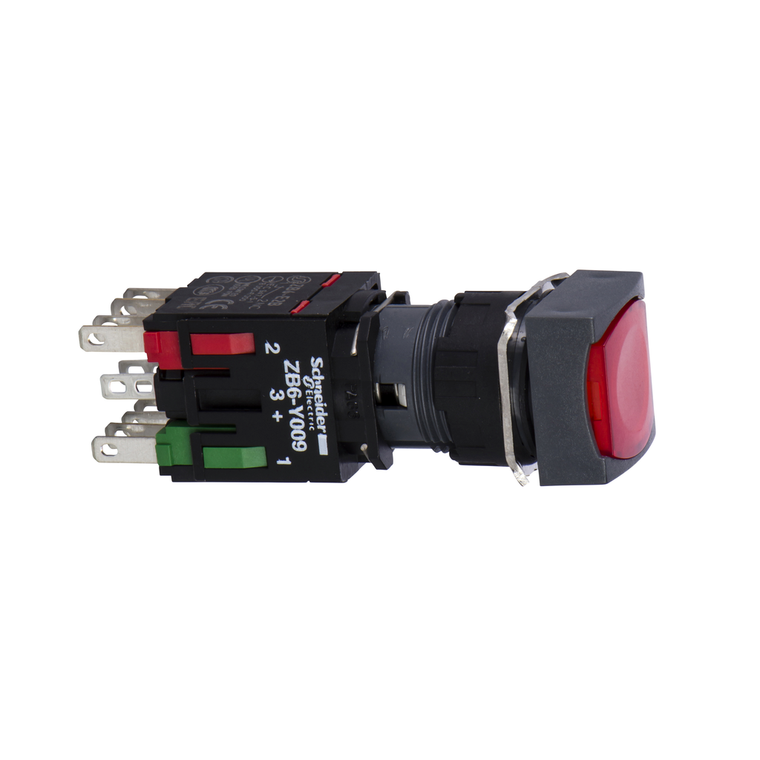

Schneider Electric XB6CW4B2B Red Illuminated Pushbut To N Diam 16 Flu

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB6CW4B2B Red Illuminated Pushbut To N Diam 16 Flu

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB6CW4B2B

UPC:

3389110763836

MPN:

Condition:

New

Type Of Operator:

spring return

Ambient Air Temperature For Storage:

-40-70 °C

Sustainable Offer Status:

Green Premium product

Shape Of Signaling Unit Head:

square

Protective Treatment:

TC

[Ui] Rated Insulation Voltage:

250 V 3)EN/IEC 60947-1

[Ie] Rated Operational Current:

3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1

Electrical Durability:

1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Light Source:

LED

Product Certifications:

CSA || GOST || UL || CCC

Cad Overall Height:

18 mm

Electromagnetic Emission:

class B IEC 55011

Bezel Material:

plastic

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ip Degree Of Protection:

IP65 IEC 60529

Nema Degree Of Protection:

NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

Operating Force:

4.5 N NC changing electrical state

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation:

X

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Current Consumption:

15 mA

Electrical Reliability:

λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4

Cad Overall Depth:

57 mm

Electrical Shock Protection Class:

class II IEC 61140

Rohs Exemption Information:

Yes

Product Or Component Type:

complete illuminated push-button

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Cad Overall Width:

18 mm

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Contact Operation:

slow-break

Operating Position:

any position

Mounting Diameter:

16 mm

Mercury Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ambient Air Temperature For Operation:

-25-70 °C

Terminals Description Iso N°1:

(21-22)NC

Contacts Material:

silver alloy (Ag/Ni)

Operating Travel:

2 mm NC changing electrical state) || 3.5 mm total travel)

Warranty:

18 months

Connections - Terminals:

Faston connectors 2.8 x 0.5 mm

[Uimp] Rated Impulse Withstand Voltage:

4 kV EN/IEC 60947-1

Positive Opening:

with EN/IEC 60947-5-1 appendix K

Range Of Product:

Harmony XB6

Bulb Base:

integral LED

Standards:

EN/IEC 60947-5-1 || JIS C 4520 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || JIS C 852 || EN/IEC 60947-1

Device Short Name:

XB6

Operator Profile:

red flush, unmarked

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Sale Per Indivisible Quantity:

1

Short-Circuit Protection:

6 A cartridge fuse gG

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Circularity Profile:

ENVEOLI1710010EN

Contacts Type And Composition:

1 NC

Signalling Type:

steady

Surge Withstand:

1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5

Environmental Disclosure:

ENVPEP1710010EN

Supply Voltage Limits:

6-30 V AC/DC

Net Weight:

0.022 kg

[Us] Rated Supply Voltage:

12...24 V AC/DC
