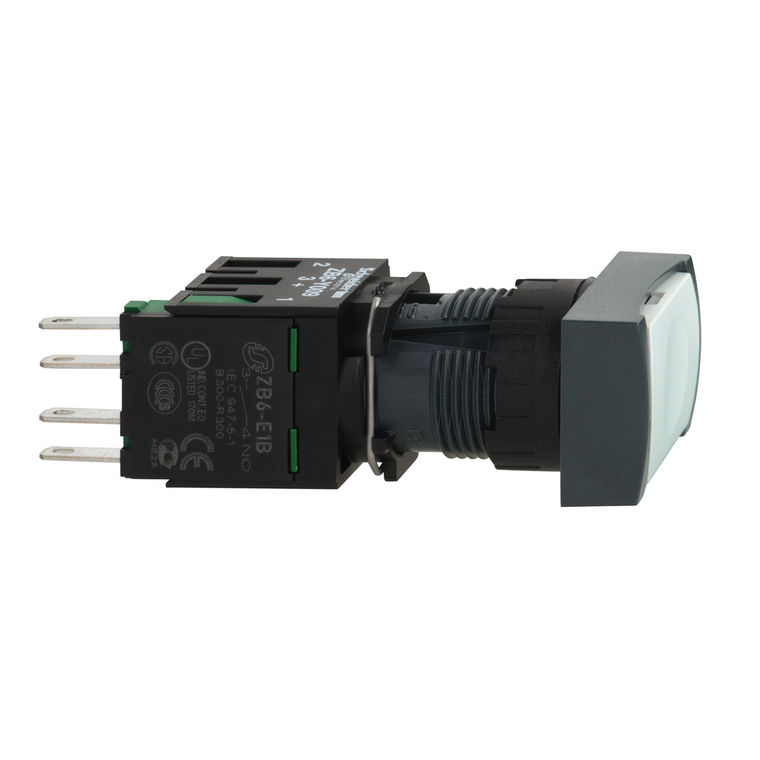

Schneider Electric XB6DA11B White Pushbut To N Diam 16 Flush Spring
SKU:
XB6DA11B
UPC:
3389110764215
MPN:
Condition:
New
Operating Travel:
1 mm NO changing electrical state) || 3.5 mm total travel)
Product Or Component Type:
complete push-button
Environmental Disclosure:
ENVPEP1710010EN
Toxic Heavy Metal Free:
Yes
Electrical Reliability:
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Vibration Resistance:
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
China Rohs Regulation:
X
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Bezel Material:
plastic
Operating Force:
3.5 N NO changing electrical state
Range Of Product:
Harmony XB6
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Shock Protection Class:
class II IEC 61140
[Ui] Rated Insulation Voltage:
250 V 3)EN/IEC 60947-1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Storage:
-40-70 °C
Reach Free Of Svhc:
Yes
Cad Overall Depth:
57 mm
Mechanical Durability:
2000000 cycles
Nema Degree Of Protection:
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Contact Operation:
slow-break
Ambient Air Temperature For Operation:
-25-70 °C
Protective Treatment:
TC
Mounting Diameter:
16 mm
Positive Opening:
with EN/IEC 60947-5-1 appendix K
Reach Regulation:
Free of Substances of Very High Concern above the threshold
[Ie] Rated Operational Current:
3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Warranty:
18 months
Contacts Type And Composition:
1 NO
Electrical Durability:
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
[Uimp] Rated Impulse Withstand Voltage:
4 kV EN/IEC 60947-1
Contacts Material:
silver alloy (Ag/Ni)
Shape Of Signaling Unit Head:
rectangular
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ip Degree Of Protection:
IP65 IEC 60529
Mercury Free:
Yes
Product Certifications:
CSA || UL || CCC || GOST
Sustainable Offer Status:
Green Premium product
Net Weight:
0.019 kg
Sale Per Indivisible Quantity:
1
Connections - Terminals:
Faston connectors 2.8 x 0.5 mm
Operator Profile:
white flush, unmarked
Cad Overall Width:
24 mm
Standards:
EN/IEC 60947-5-1 || JIS C 4520 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C 852 || EN/IEC 60947-5-5 || UL 508
This Harmony XB6 black, complete push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape, with a flush spring return push. It features 1 NO + 1 NC...
