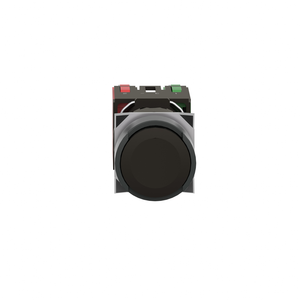

Schneider Electric XB6DA22B Black Pushbut To N Diam 16 Flush Spring

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB6DA22B Black Pushbut To N Diam 16 Flush Spring

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB6DA22B

UPC:

3.38911E+12

MPN:

Condition:

New

Ambient Air Temperature For Operation:

-25-70 °C

Positive Opening:

with IEC 60947-5-1 appendix K

Sustainable Offer Status:

Green Premium product

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Certifications:

GOST || CCC || UL || CSA

Electrical Reliability:

λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4

Bezel Material:

plastic

Mechanical Durability:

2000000 cycles

Range Of Product:

Harmony XB6

Reach Free Of Svhc:

Yes

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Contact Operation:

slow-break

Terminals Description Iso N°1:

(21-22)NC

Environmental Disclosure:

ENVPEP1710010EN

[Ie] Rated Operational Current:

3 A 120 V, AC-15, B300 IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1

Short-Circuit Protection:

6 A cartridge fuse gG

Shape Of Signaling Unit Head:

rectangular

Type Of Operator:

spring return

Electrical Durability:

1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Connections - Terminals:

Faston connectors 2.8 x 0.5 mm

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

China Rohs Regulation:

X

Cad Overall Depth:

57 mm

Ambient Air Temperature For Storage:

-40-70 °C

Cad Overall Width:

24 mm

Mounting Diameter:

16 mm

Rohs Exemption Information:

Yes

Ip Degree Of Protection:

IP65 IEC 60529

Toxic Heavy Metal Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Or Component Type:

complete push-button

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Device Short Name:

XB6

Operator Profile:

black flush, unmarked

Operating Force:

4.5 N NC changing electrical state

Net Weight:

0.019 kg

Warranty:

18 months

Protective Treatment:

TC

Electrical Shock Protection Class:

class II IEC 61140

Contacts Material:

silver alloy (Ag/Ni)

Standards:

UL 508 || IEC 60947-1 || IEC 60947-5-1 || JIS C 852 || CSA C22.2 No 14 || JIS C 4520 || IEC 60947-5-5

Mercury Free:

Yes

Sale Per Indivisible Quantity:

1

Contacts Type And Composition:

1 NC

Cad Overall Height:

18 mm

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Operating Position:

any position

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Operating Travel:

2 mm NC changing electrical state) || 3.5 mm total travel)

Circularity Profile:

ENVEOLI1710010EN

Nema Degree Of Protection:

NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
