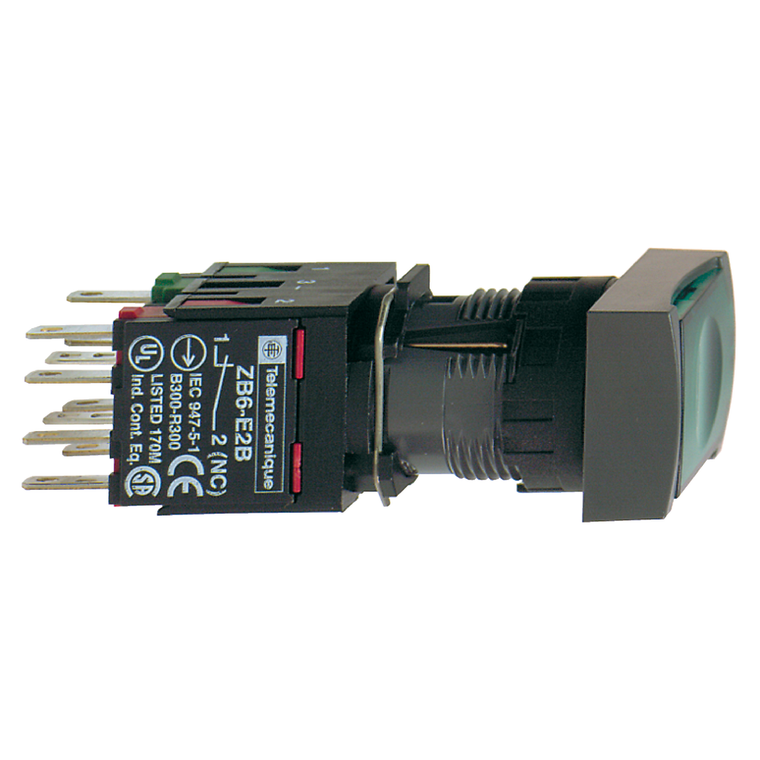

Schneider Electric XB6DF3B5B Green Illuminated Pushbut To N Diam 16 F
SKU:
XB6DF3B5B
UPC:
3389110763973
MPN:
Condition:
New
Vibration Resistance:
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Warranty:
18 months
Current Consumption:
15 mA
[Ui] Rated Insulation Voltage:
250 V 3)EN/IEC 60947-1
Range Of Product:
Harmony XB6
Ip Degree Of Protection:
IP65 IEC 60529
Product Or Component Type:
complete illuminated push-button
[Ie] Rated Operational Current:
3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Height:
18 mm
Positive Opening:
with EN/IEC 60947-5-1 appendix K
Circularity Profile:
ENVEOLI1710010EN
Nema Degree Of Protection:
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Operating Force:
3.5 N NO changing electrical state || 4.5 N NC changing electrical state
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Net Weight:
0.025 kg
Operator Profile:
green flush, unmarked
Bulb Base:
integral LED
Rohs Exemption Information:
Yes
Connections - Terminals:
Faston connectors 2.8 x 0.5 mm
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Electromagnetic Emission:
class B IEC 55011
Mounting Diameter:
16 mm
Electrical Durability:
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Electrical Reliability:
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Ambient Air Temperature For Storage:
-40-70 °C
Product Certifications:
UL || CSA || GOST || CCC
Ambient Air Temperature For Operation:
-25-70 °C
Terminals Description Iso N°1:
(21-22)NC || (13-14)NO
[Uimp] Rated Impulse Withstand Voltage:
4 kV EN/IEC 60947-1
[Us] Rated Supply Voltage:
12...24 V AC/DC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Short-Circuit Protection:
6 A cartridge fuse gG
Surge Withstand:
1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
Device Short Name:
XB6
Sale Per Indivisible Quantity:
1
Depth:
57 mm
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Operating Position:
any position
Electrical Shock Protection Class:
class II IEC 61140
Supply Voltage Limits:
6-30 V AC/DC
China Rohs Regulation:
X
Contacts Type And Composition:
1 NO + 1 NC
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Signaling Unit Head:
rectangular
Operating Travel:
1 mm NO changing electrical state) || 2 mm NC changing electrical state) || 3.5 mm total travel)
Bezel Material:
plastic
Light Source:
LED
Standards:
JIS C 4520 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || JIS C 852 || EN/IEC 60947-1
Width:
24 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
This Harmony XB6 green, complete illuminated push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a square head shape, with a flush spring return push and is supplied...
