Schneider Electric XB6DF4B5B Red Illuminated Pushbut To N Diam 16 Flu

Schneider Electric XB6DF4B5B Red Illuminated Pushbut To N Diam 16 Flu

Schneider Electric
SKU:
XB6DF4B5B
|
UPC:
3389110764031
$52.40
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

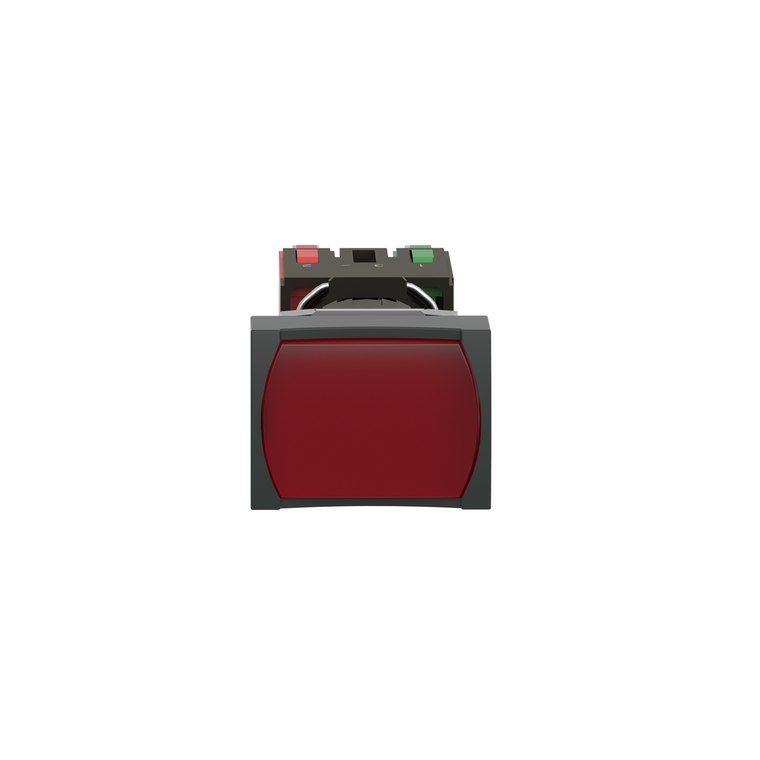

This Harmony XB6 red, complete illuminated push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a rectangular head shape, with a flush latching push and is supplied with an integral LED. It features 1 NO + 1 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. This range comes with good color purity and offers the advantage of LED brightness. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.
Additional Information
Electrical Shock Protection Class:
class II IEC 61140
Environmental Disclosure:
ENVPEP1710010EN
Electrical Reliability:
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
[Ui] Rated Insulation Voltage:
250 V 3)EN/IEC 60947-1
Short-Circuit Protection:
6 A cartridge fuse gG
Light Source:
LED
Positive Opening:
with EN/IEC 60947-5-1 appendix K
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
[Ie] Rated Operational Current:
3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Product Or Component Type:
complete illuminated push-button
Contacts Material:
silver alloy (Ag/Ni)
[Us] Rated Supply Voltage:
12...24 V AC/DC
Net Weight:
0.025 kg
Current Consumption:
15 mA
Rohs Exemption Information:
Yes
Signalling Type:
steady
Connections - Terminals:
Faston connectors 2.8 x 0.5 mm
Protective Treatment:
TC
Operating Travel:
1 mm NO changing electrical state) || 2 mm NC changing electrical state) || 3.5 mm total travel)
Terminals Description Iso N°1:
(13-14)NO || (21-22)NC
Electromagnetic Emission:
class B IEC 55011
Electrical Durability:
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Width:
24 mm
Device Short Name:
XB6
Sustainable Offer Status:
Green Premium product
Shape Of Signaling Unit Head:
rectangular
Supply Voltage Limits:
6-30 V AC/DC
Contact Operation:
slow-break
Circularity Profile:
ENVEOLI1710010EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Nema Degree Of Protection:
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
[Uimp] Rated Impulse Withstand Voltage:
4 kV EN/IEC 60947-1
Vibration Resistance:
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Warranty:
18 months
Contacts Type And Composition:
1 NO + 1 NC
Operating Force:
3.5 N NO changing electrical state || 4.5 N NC changing electrical state
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Surge Withstand:
1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
Standards:
EN/IEC 60947-5-5 || JIS C 4520 || EN/IEC 60947-5-1 || JIS C 852 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1
China Rohs Regulation:
X
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Operating Position:
any position
Bezel Material:
plastic
Sale Per Indivisible Quantity:
1
Product Certifications:
CCC || CSA || GOST || UL
Ambient Air Temperature For Operation:
-25-70 °C
Mounting Diameter:
16 mm
Mercury Free:
Yes
Operator Profile:
red flush, unmarked
Bulb Base:
integral LED
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ip Degree Of Protection:
IP65 IEC 60529
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Range Of Product:
Harmony XB6
Ambient Air Temperature For Storage:
-40-70 °C
Depth:
57 mm
Height:
18 mm
Type Of Operator:
latching
