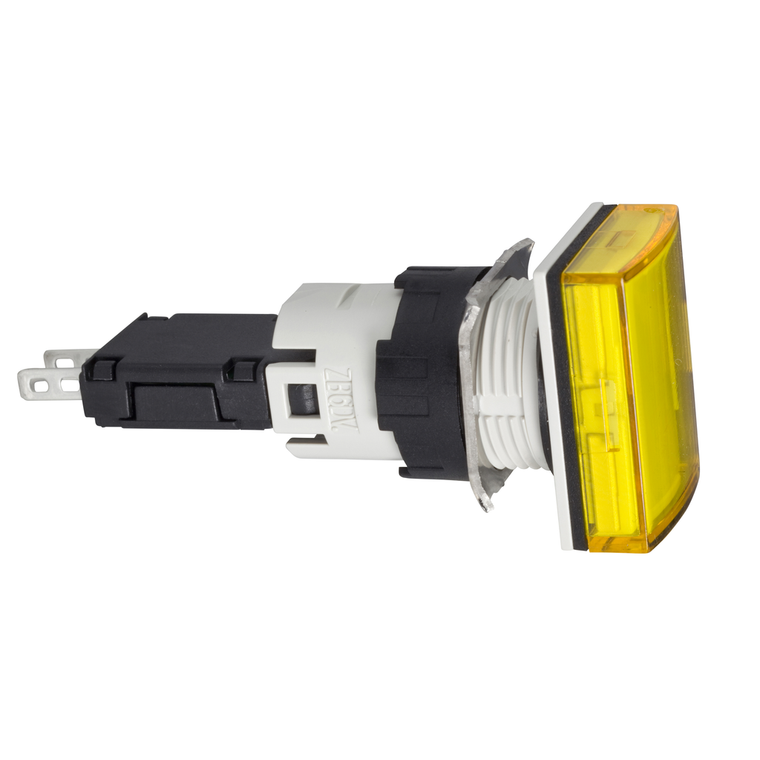

Schneider Electric XB6DV5BB Rectangular Pilot Light Diam 16 Ip 65 Ye
SKU:
XB6DV5BB
UPC:
3389110764543
MPN:
Condition:
New
Cap/Operator Or Lens Colour:
yellow
Ip Degree Of Protection:
IP65 IEC 60529
Product Certifications:
CSA || CCC || GOST || UL
Width:
24 mm
Ambient Air Temperature For Operation:
-25-70 °C
Bezel Material:
plastic
Depth:
57 mm
Circularity Profile:
ENVEOLI1710010EN
Vibration Resistance:
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Mercury Free:
Yes
Mounting Diameter:
16 mm
Electromagnetic Emission:
class B EN 55011
Current Consumption:
15 mA
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption Information:
Yes
Light Block Supply:
direct
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Warranty:
18 months
Product Or Component Type:
complete pilot light
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ambient Air Temperature For Storage:
-40-70 °C
Device Short Name:
XB6
Operating Position:
any position
Height:
18 mm
Connections - Terminals:
Faston connectors 2.8 x 0.5 mm
[Ui] Rated Insulation Voltage:
250 V 2)EN/IEC 60947-1
Signalling Type:
steady
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Signaling Unit Head:
rectangular
[Uimp] Rated Impulse Withstand Voltage:
4 kV EN/IEC 60947-1
Supply Voltage Limits:
6-30 V AC/DC
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Electrical Shock Protection Class:
class II IEC 61140
[Us] Rated Supply Voltage:
12...24 V AC/DC
Environmental Disclosure:
ENVPEP1710010EN
Standards:
JIS C 852 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-1 || JIS C8201-1
Protective Treatment:
TC
Light Source:
LED
Bulb Base:
integral LED
Range Of Product:
Harmony XB6
Nema Degree Of Protection:
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Terminals Description Iso N°1:
(+ -)PL
Sale Per Indivisible Quantity:
1
Net Weight:
0.015 kg
China Rohs Regulation:
X
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Surge Withstand:
1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
