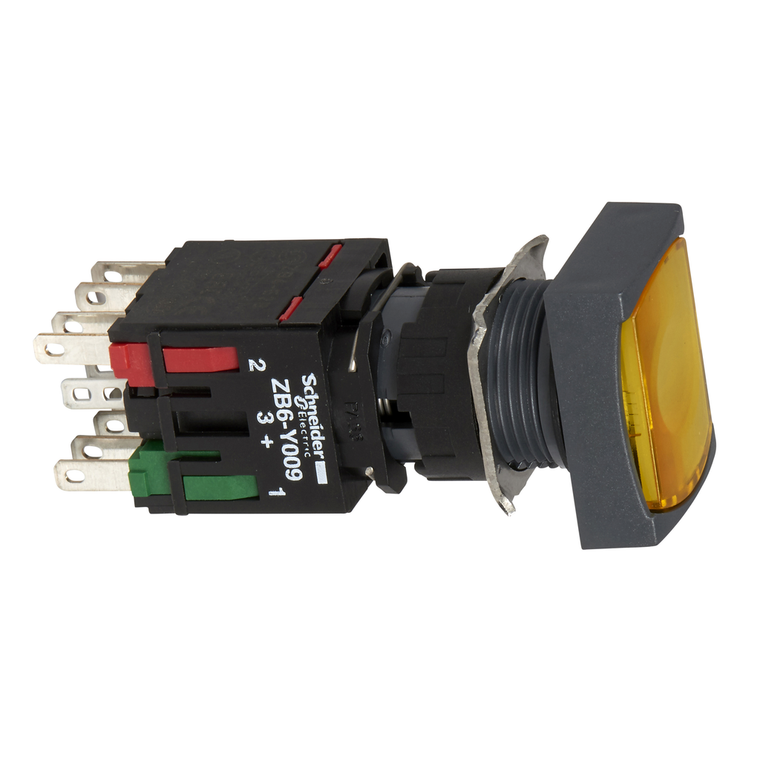

Schneider Electric XB6DW5B5B Rect.Ill.Push B.Yellow
SKU:
XB6DW5B5B
UPC:
3389110171679
MPN:
Condition:
New
Light Source:
LED
Operating Position:
any position
Device Short Name:
XB6
Operating Travel:
1 mm NO changing electrical state) || 2 mm NC changing electrical state) || 3.5 mm total travel)
Terminals Description Iso N°1:
(21-22)NC || (13-14)NO
Sustainable Offer Status:
Green Premium product
Type Of Operator:
spring return
Ambient Air Temperature For Operation:
-25-70 °C
Operator Profile:
yellow flush, unmarked
Electrical Durability:
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical Reliability:
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Bezel Material:
plastic
Contact Operation:
slow-break
Protective Treatment:
TC
Environmental Disclosure:
ENVPEP1710010EN
Sale Per Indivisible Quantity:
1
Contacts Material:
silver alloy (Ag/Ni)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Surge Withstand:
1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
Electromagnetic Emission:
class B IEC 55011
Cad Overall Width:
24 mm
[Us] Rated Supply Voltage:
12...24 V AC/DC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 60947-1
Signalling Type:
steady
Current Consumption:
15 mA
Rohs Exemption Information:
Yes
Supply Voltage Limits:
6-30 V AC/DC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Cad Overall Depth:
57 mm
Contacts Type And Composition:
1 NO + 1 NC
Positive Opening:
with IEC 60947-5-1 appendix K
Range Of Product:
Harmony XB6
Net Weight:
0.025 kg
Shape Of Signaling Unit Head:
rectangular
Mounting Diameter:
16 mm
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Or Component Type:
complete illuminated push-button
Short-Circuit Protection:
6 A cartridge fuse gG
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Vibration Resistance:
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
China Rohs Regulation:
X
Mercury Free:
Yes
[Ie] Rated Operational Current:
3 A 120 V, AC-15, B300 IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Ip Degree Of Protection:
IP65 IEC 60529
Warranty:
18 months
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Standards:
CSA C22.2 No 14 || JIS C 852 || IEC 60947-5-1 || IEC 60947-1 || JIS C 4520 || IEC 60947-5-5
Bulb Base:
integral LED
Electrical Shock Protection Class:
class II IEC 61140
Product Certifications:
UL || CSA || CCC || GOST
Nema Degree Of Protection:
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Circularity Profile:
ENVEOLI1710010EN
Ambient Air Temperature For Storage:
-40-70 °C
Operating Force:
3.5 N NO changing electrical state || 4.5 N NC changing electrical state
