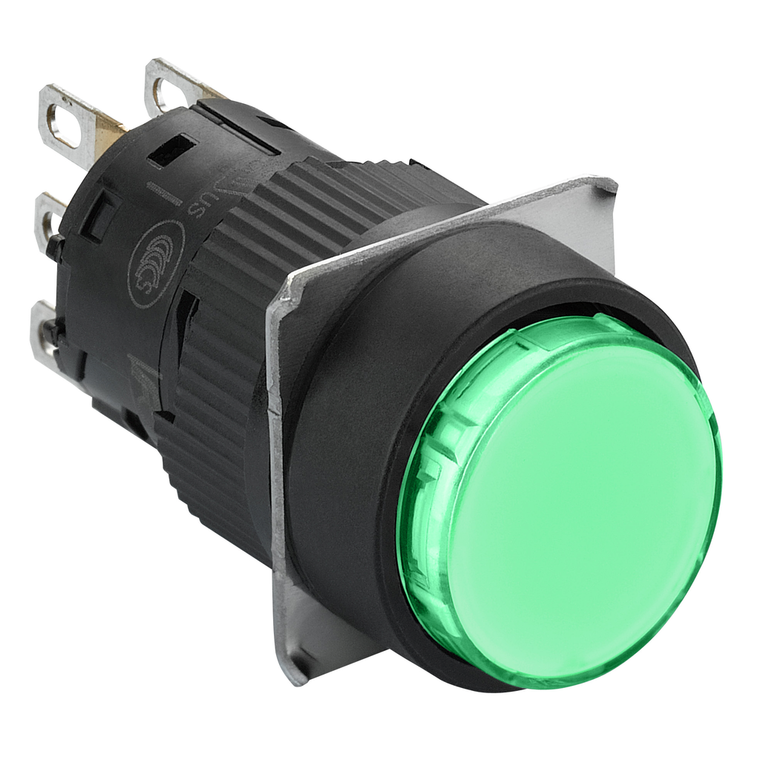

Schneider Electric XB6EAA31P R.Push.Bu.Green.N O.Ip65 Pack of 50
SKU:
XB6EAA31P
UPC:
3389110624441
MPN:
Condition:
New
Operator Profile:
green flush
Toxic Heavy Metal Free:
Yes
Marking:
CE
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Shape Of Signaling Unit Head:
round
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Contact Resistance:
50 mOhm 1/6 V
Reach Free Of Svhc:
Yes
Net Weight:
0.006 kg
[Ie] Rated Operational Current:
1.5 A 120 V, AC-12 EN/IEC 60947-5-1 || 1 A 240 V, AC-12 EN/IEC 60947-5-1 || 0.7 A 240 V, AC-13 EN/IEC 60947-5-1 || 1 A 120 V, AC-13 EN/IEC 60947-5-1 || 1 A 24 V, DC-12 EN/IEC 60947-5-1 || 0.7 A 24 V, DC-13 EN/IEC 60947-5-1 || 0.2 A 125 V, DC-12 EN/IE
Electrical Durability:
100000 cycles, AC, 0.7 A 220 V EN/IEC 60947-5-1 appendix C
Standards:
UL 508 || IEC 60947-1 || JIS C 852 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C 4520
Vibration Resistance:
1 mm 10-55 Hz)IEC 60068-2-6
Range Of Product:
Harmony XB6E
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Contact Operation:
snap action
Overvoltage Category:
II IEC 60536
Circularity Profile:
ENVEOLI1710010EN
Ip Degree Of Protection:
IP65 IEC 60529
Warranty:
18 months
Ambient Air Temperature For Operation:
-10-55 °C
China Rohs Regulation:
X
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Device Short Name:
XB6E
Sale Per Indivisible Quantity:
5
Mechanical Durability:
1000000 cycles
Environmental Disclosure:
ENVPEP1710010EN
Sustainable Offer Status:
Green Premium product
Operating Position:
any position
Product Or Component Type:
monolithic push-button
Contacts Material:
gold-flashed silver
Shock Resistance:
10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Contacts Type And Composition:
1 C/O
[Ith] Conventional Free Air Thermal Current:
3 A fast connector socket) || 5 A
Type Of Operator:
spring return
Short-Circuit Protection:
2 A cartridge fuse gG
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Bezel Material:
plastic
Ambient Air Temperature For Storage:
-40-70 °C
Connections - Terminals:
insulated faston 2.8 x 0.5 mm || solder terminal <= 0.75 mm² AWG 19 || fast connector socket
