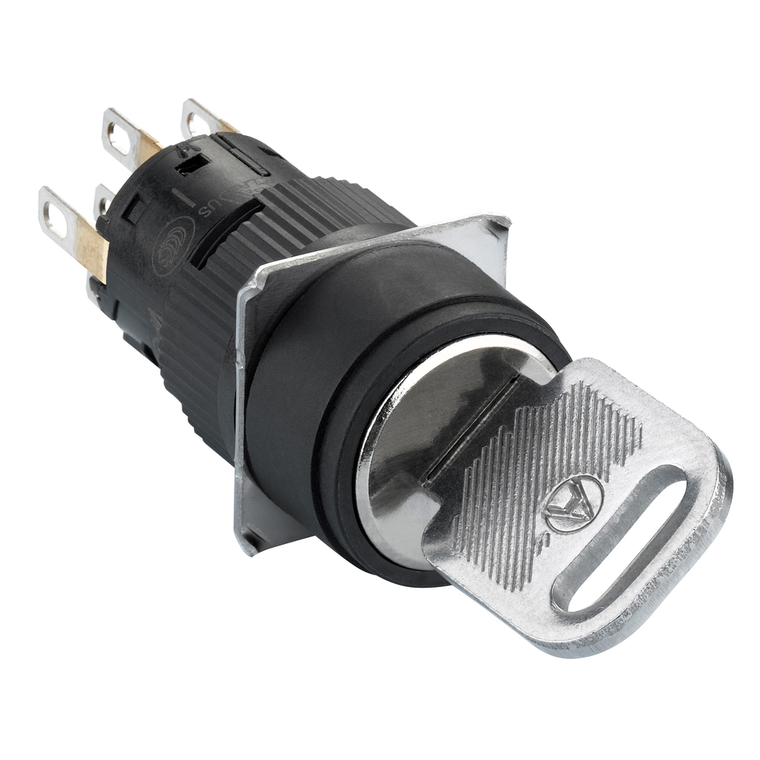

Schneider Electric XB6EAG232P Key Selector Switch Round 3 Maintened 2 Pack of 5

Schneider Electric XB6EAG232P Key Selector Switch Round 3 Maintened 2 Pack of 5

Schneider Electric
SKU:
XB6EAG232P
|
UPC:
3.38911E+12
Availability:
Contact us to confirm availability and lead times.
$128.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
KEY SELECTOR SWITCH ROUND 3 MAINTENED 2
Additional Information
Mechanical Durability:
250000 cycles
Warranty:
18 months
Contacts Type And Composition:
2 C/O
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Short-Circuit Protection:
2 A cartridge fuse gG
Operator Profile:
key switch
Type Of Operator:
stay put
Connections - Terminals:
insulated faston 2.8 x 0.5 mm || solder terminal <= 0.75 mm² AWG 19 || fast connector socket
Contacts Material:
gold-flashed silver
Mounting Diameter:
16 mm
Reach Free Of Svhc:
Yes
Mercury Free:
Yes
Ambient Air Temperature For Storage:
-40-70 °C
[Ie] Rated Operational Current:
1.5 A 120 V, AC-12 IEC 60947-5-1 || 1 A 240 V, AC-12 IEC 60947-5-1 || 0.7 A 240 V, AC-13 IEC 60947-5-1 || 1 A 120 V, AC-13 IEC 60947-5-1 || 1 A 24 V, DC-12 IEC 60947-5-1 || 0.7 A 24 V, DC-13 IEC 60947-5-1 || 0.2 A 125 V, DC-12 IEC 60947-5-1 || 0.15 A
Product Certifications:
cURus || CCC
Key Number:
132
Operator Position Information:
3 positions
Overvoltage Category:
II IEC 60536
Range Of Product:
Harmony XB6E
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Contact Operation:
snap action
Net Weight:
0.02 kg
Product Or Component Type:
monolithic selector switch
Marking:
CE
Shock Resistance:
10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Key Withdrawal Position:
in any position
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Tightening Torque:
0.6-1 N.m
Environmental Disclosure:
ENVPEP1710010EN
Ambient Air Temperature For Operation:
-10-55 °C
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Standards:
UL 508 || JIS C8201-5-1 || JIS C 852 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-1
Contact Resistance:
50 mOhm 1/6 V
Shape Of Signaling Unit Head:
round
Bezel Material:
plastic
Device Short Name:
XB6E
Vibration Resistance:
1 mm 10-55 Hz)IEC 60068-2-6
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation:
X
Toxic Heavy Metal Free:
Yes
Electrical Durability:
100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C
Sale Per Indivisible Quantity:
5
[Ith] Conventional Free Air Thermal Current:
3 A fast connector socket) || 5 A
Circularity Profile:
ENVEOLI1710010EN
Ip Degree Of Protection:
IP65 IEC 60529
