Schneider Electric

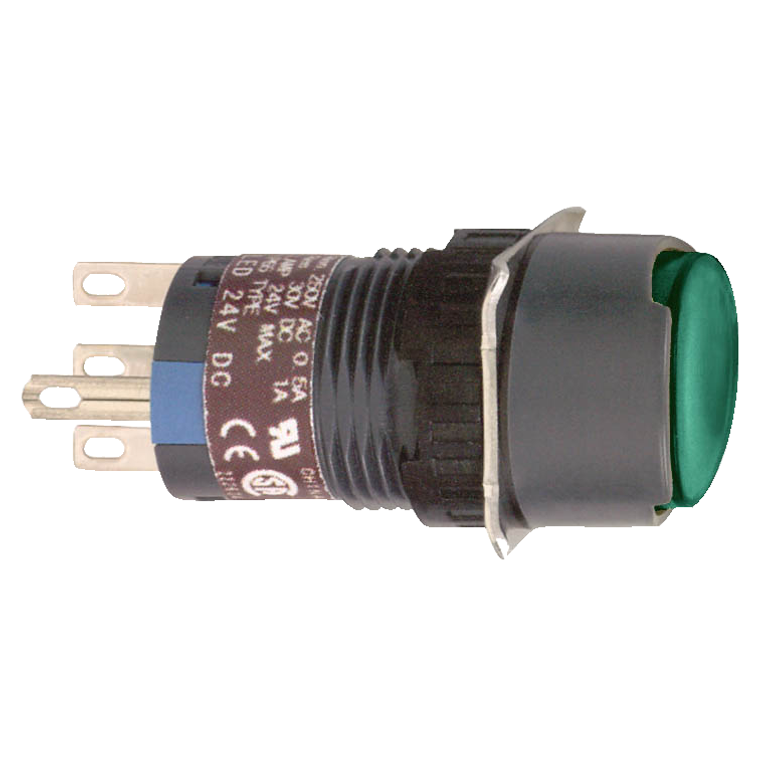

Schneider Electric XB6EAW3B1P Ill.Pu.But.R.Gr.No Nc.24V Pack of 5

SKU:

XB6EAW3B1P

UPC:

3389110625028

MPN:

Condition:

New

Circularity Profile:

ENVEOLI1710010EN

Range Of Product:

Harmony XB6E

Environmental Disclosure:

ENVPEP1710010EN

Electrical Durability:

100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ambient Air Temperature For Storage:

-40-70 °C

Type Of Operator:

spring return

Product Certifications:

CCC || cURus

Light Source:

integral LED

China Rohs Regulation:

X

Net Weight:

0.006 kg

Operator Profile:

green flush

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Contact Operation:

snap action

Connections - Terminals:

insulated faston 2.8 x 0.5 mm || solder terminal <= 0.75 mm² AWG 19 || fast connector socket

Contact Resistance:

50 mOhm 1/6 V

Bezel Material:

plastic

Marking:

CE

Rohs Exemption Information:

Yes

Vibration Resistance:

1 mm 10-55 Hz)IEC 60068-2-6

Shape Of Signaling Unit Head:

round

Shock Resistance:

10 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Mechanical Durability:

1000000 cycles

Short-Circuit Protection:

2 A cartridge fuse gG

Standards:

IEC 60947-1 || JIS C 4520 || UL 508 || IEC 60947-5-1 || JIS C 852 || CSA C22.2 No 14

Operating Position:

any position

Mercury Free:

Yes

Ip Degree Of Protection:

IP65 IEC 60529

Sale Per Indivisible Quantity:

5

Contacts Material:

gold-flashed silver

[Us] Rated Supply Voltage:

24 V DC polarised

Reach Free Of Svhc:

Yes

[Ie] Rated Operational Current:

1.5 A 120 V, AC-12 IEC 60947-5-1 || 1 A 240 V, AC-12 IEC 60947-5-1 || 1 A 24 V, DC-12 IEC 60947-5-1 || 0.7 A 24 V, DC-13 IEC 60947-5-1 || 0.2 A 125 V, DC-12 IEC 60947-5-1 || 0.15 A 125 V, DC-13 IEC 60947-5-1

Mounting Diameter:

16 mm

[Ith] Conventional Free Air Thermal Current:

3 A fast connector socket) || 5 A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Warranty:

18 months

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Device Short Name:

XB6E

Service Life:

30000 h

Current Consumption:

10 mA

Signalling Type:

steady

Sustainable Offer Status:

Green Premium product

Contacts Type And Composition:

1 C/O

Product Or Component Type:

illuminated monolithic push-button

Ambient Air Temperature For Operation:

-10-55 °C

Catalog:

View

Datasheet:

View
